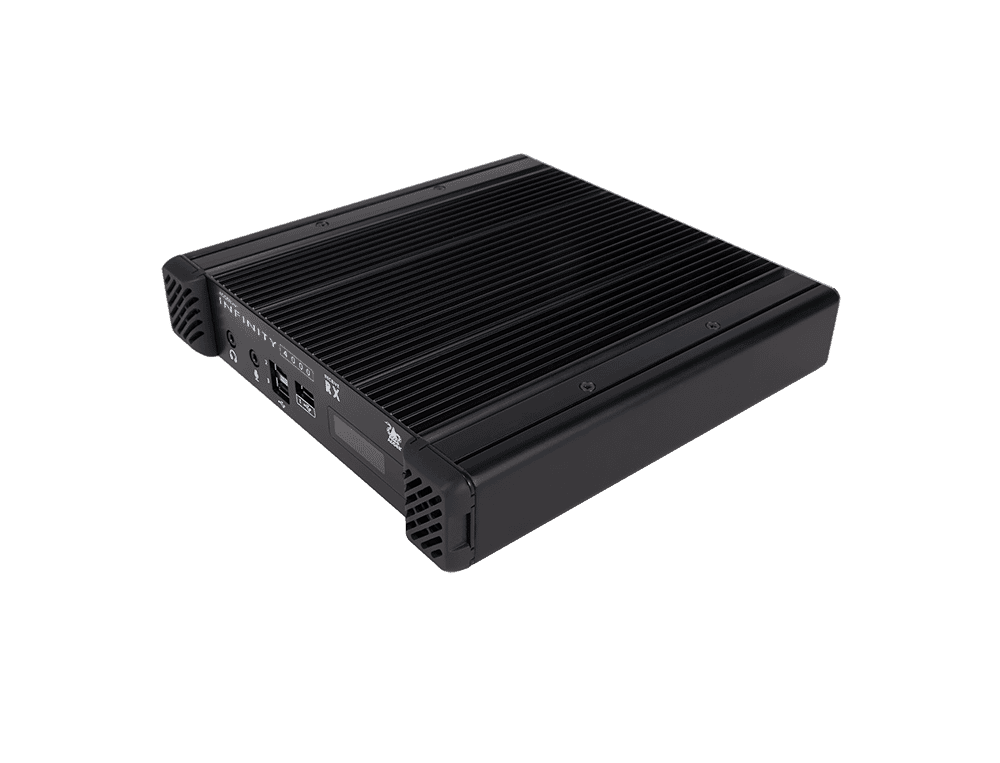

ADDERLink® INFINITY 4021R

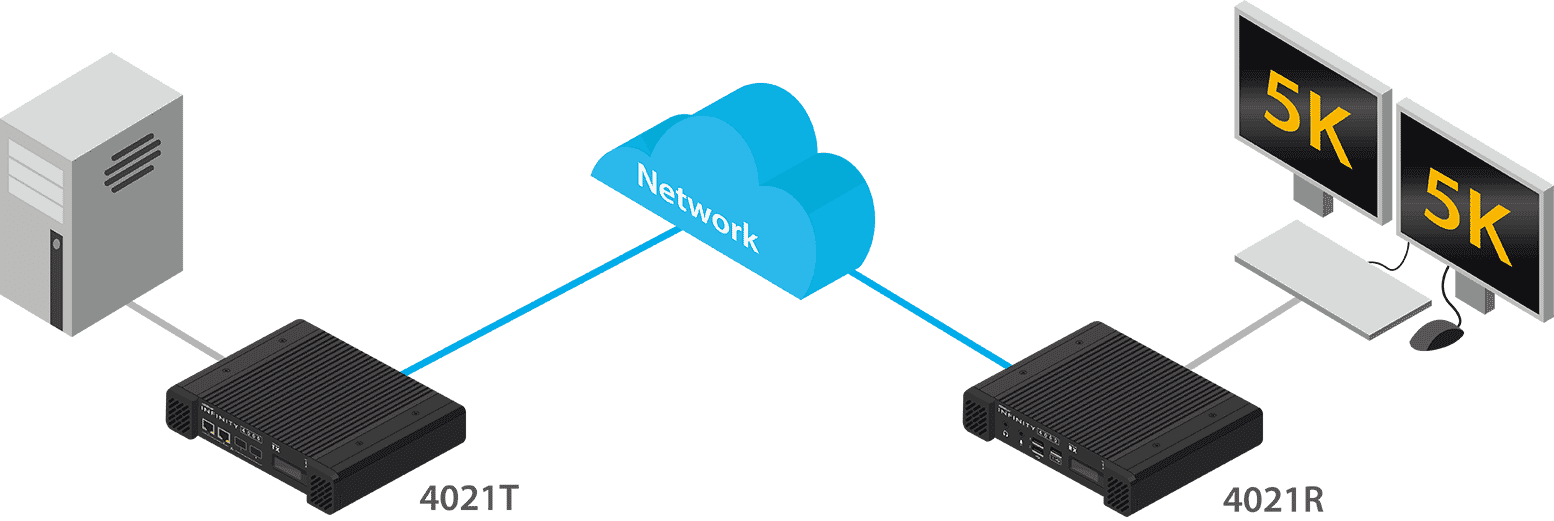

The ADDERLink® INFINITY 4021 (ALIF4021) is the world’s first dual-head, 5K high performance IP KVM matrix over a single fiber. Fully compatible with the existing ADDERLink® INFINITY (ALIF) range, and supported by the ADDERLink® INFINITY Manager (AIM), the ALIF4021 can be used as a point-to-point extender or easily integrated into a wider matrix system.
Product Specification
Receiver (ALIF4021R) Specification
Video Information (For 1 Screen)
| Maximum Resolution | 5120 x 2880 |
|---|---|
| Colour Depth | 10 bpc |
Additional Video Information
| Additional Information |
Supports resolutions up to 5120 x 2880 including UHD or DCI and refresh rates up to 240Hz. Up to 10-bit per color SDR and HDR10. |
|---|

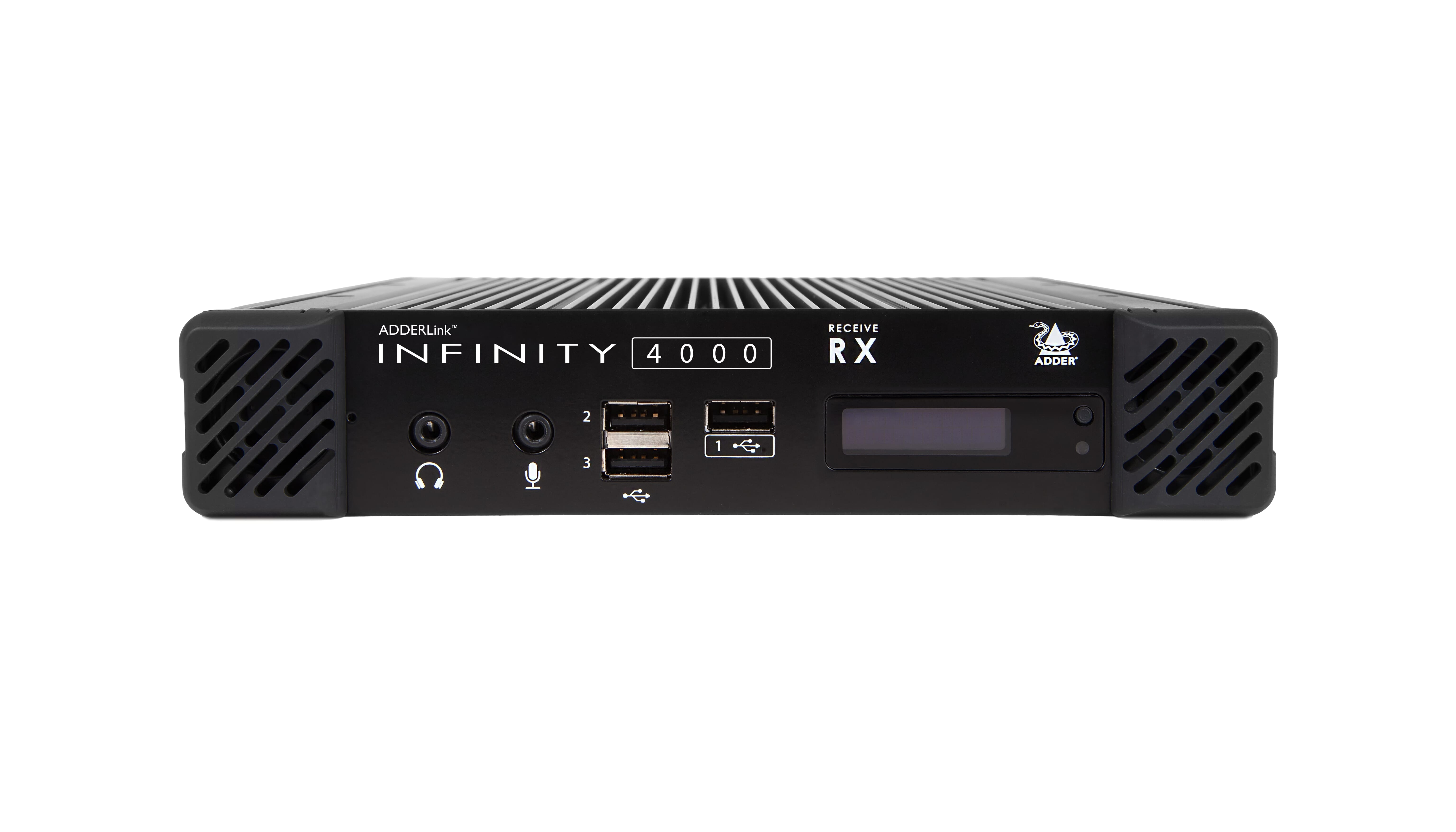

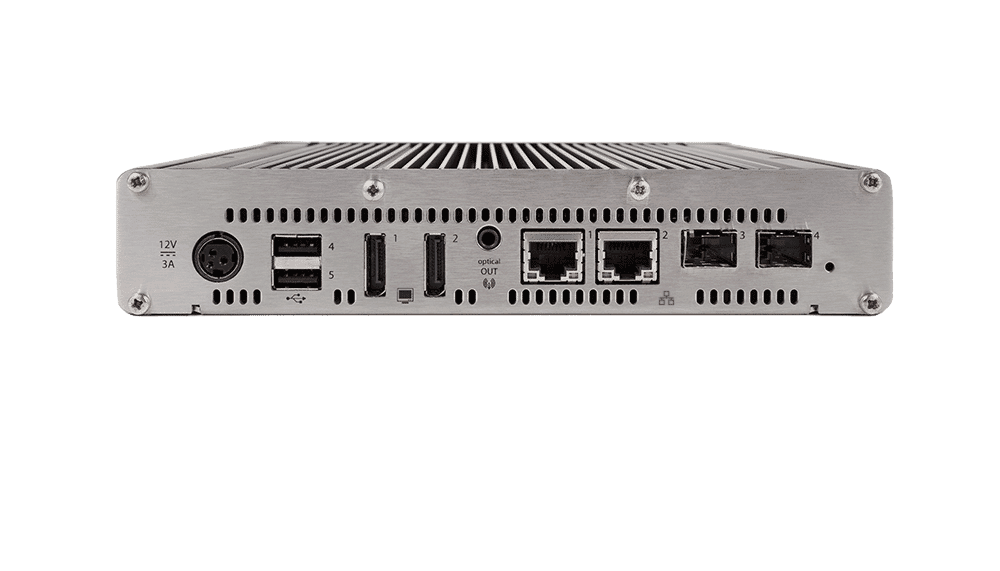

Console Connections
| USB A | 4× 2.0 True Emulation, High Speed |
|---|---|
| USB A | 1× 2.0 Transparent, High Speed |
| Full Size DisplayPort | 2× |
Link Ports
| 8p8c (RJ45) | 2× |
|---|---|
| SFP+ | 2× |
Audio Connections
| Audio Type | Analog/Digital |
|---|---|
| Channels | 2 |
| Audio In Ports | 1× 3.5mm jack |
| Audio Out Ports | 1× 3.5mm jack |
| Size (bit) | 16 |
| Speed (kHz) | 48 |
| Additional Information |
Analog Line in/out 2 channel 16bit 48KHz 1V RMS in/1V RMS out. 2x DisplayPort™ Audio in either 2, 6 or 8 channels linear PCM |
Network Support
| Bandwidth |
2x 10GbE (no10/100/1000 support on fiber) via SFP 2x 10,5,2.5 and 1GbE when using SFP-CATX-MR SFP 2x 1GbE (no 10/100 support) via CATX ports |
|---|---|
| 10/100 Support | No |
Environmental
| Operating Temperature | 0 to 40 °C / 32 to 104 °F |
|---|---|
| Storage Temperature | 0 to 40 °C / 32 to 104 °F |
| Operating Humidity (%) | 10% - 90% (non-condensing) |
| Altitude | 2000m / 6562ft |
| Mean Time Between Failure (MTBF) | 165,000 h |
| MTBF Standard | Telcordia SR332 Issue 4 March 2016 Calculated @ 55C |
Power Source
| 12V 3-pin | 1× |
|---|
Power Consumption
| Typical Power (Watts) | 20 |
|---|
Physical Design
| Construction Material | Aluminium and steel construction |
|---|---|
| Width | 215mm / 8.5in |
| Height | 40mm / 1.6in |
| Depth | 210mm / 8.30in |
| Weight | 1.8kg / 4lb |
Compatibility
| OS Compatibility | Windows, macOS |
|---|
Approvals and Standards
| Approvals | CE, cULus - E476334, FCC, ICES, RCM, UKCA |
|---|---|
| Standards | ANSI 63.4, EN/IEC 62368-1, EN55032 /CISPR 32, EN55035/CISPR 35, EN61000-3-2, EN61000-3-3, EN63000, FCC pt15B, ICES003 |
| Other | Cal Prop 65, China ROHS, EU REACH, UK REACH |
Packing Box
| Length | 285mm / 11.2in | |
|---|---|---|
| Width | 245mm / 9.6in | |
| Depth | 145mm / 5.7in | |
| Weight | 2.5kg / 5.5lb | |
Ordering Information
| Code | Description |
|---|---|
| ALIF4021R-XX | ALIF4021 Receiver |
What's in the Box?
| 1× ALIF4021 Receiver |
| 1× PSU-IEC-12VDC-5A : Power supply unit |
| 1× IEC PSU cable of country code |
