ADDER® RED-PSU PRO1-8

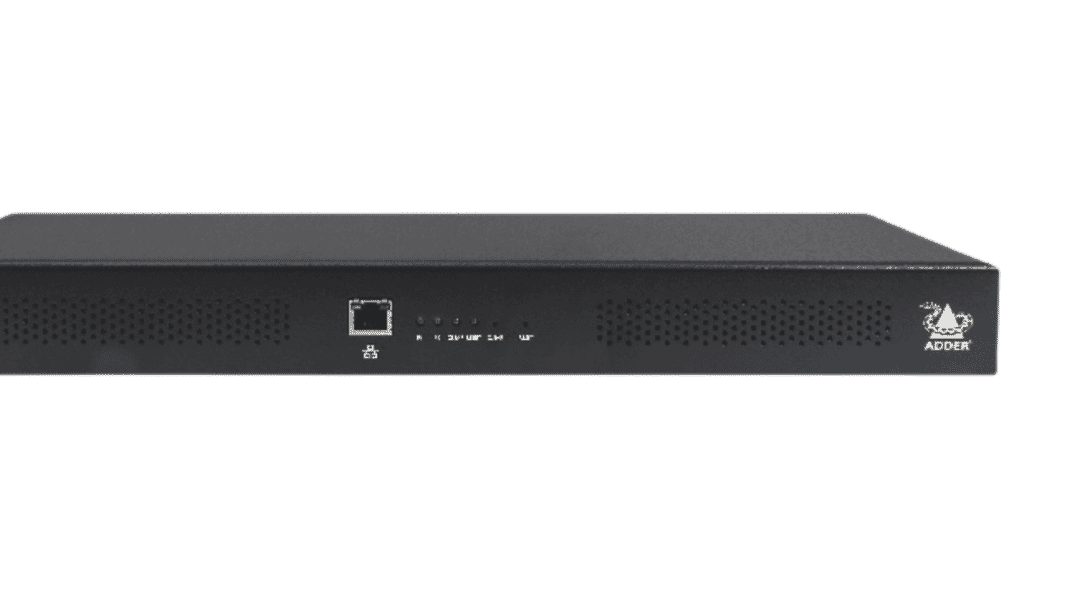

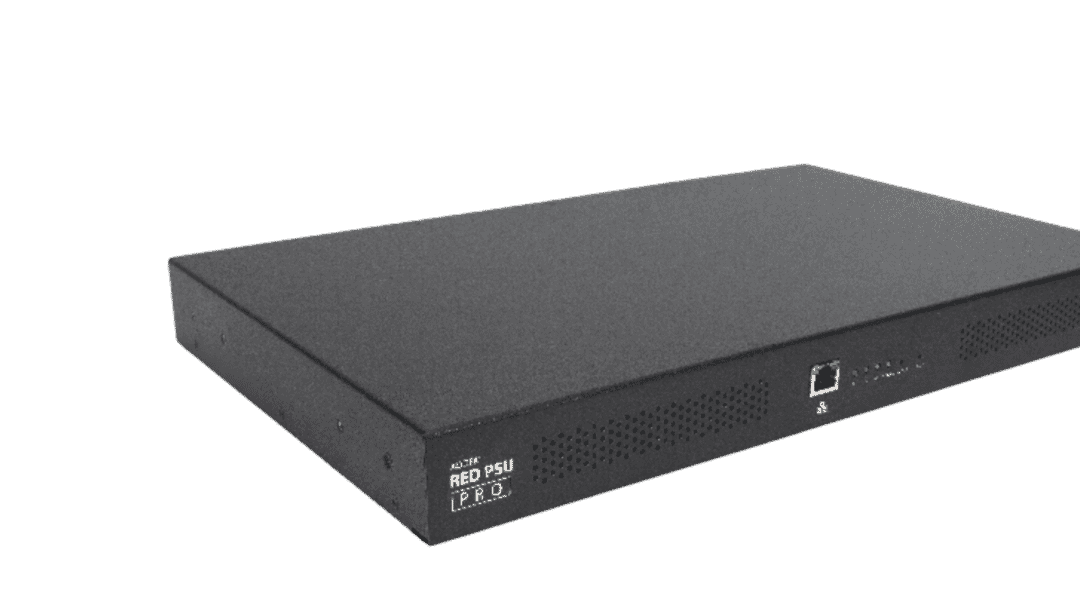

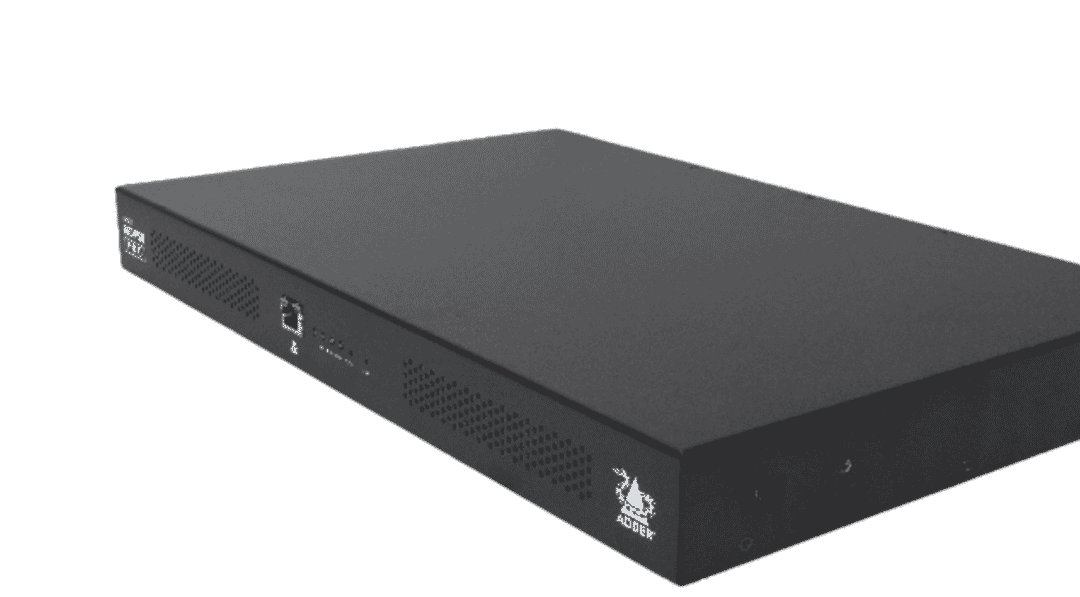

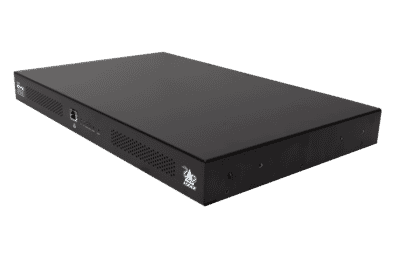

ADDER® RED-PSU PRO1-8 provides your installation with the power to grow on demand. Housed within a 1U 19-inch rack mount module, RED-PSU PRO delivers 8 power 12VDC outputs with remote management.
8 Port Power Outputs

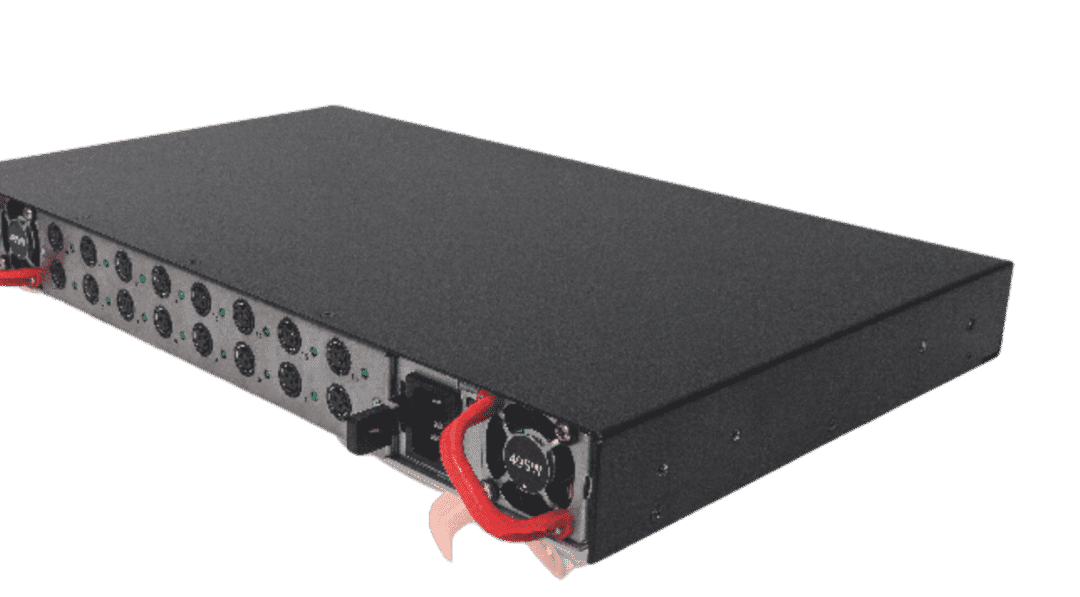

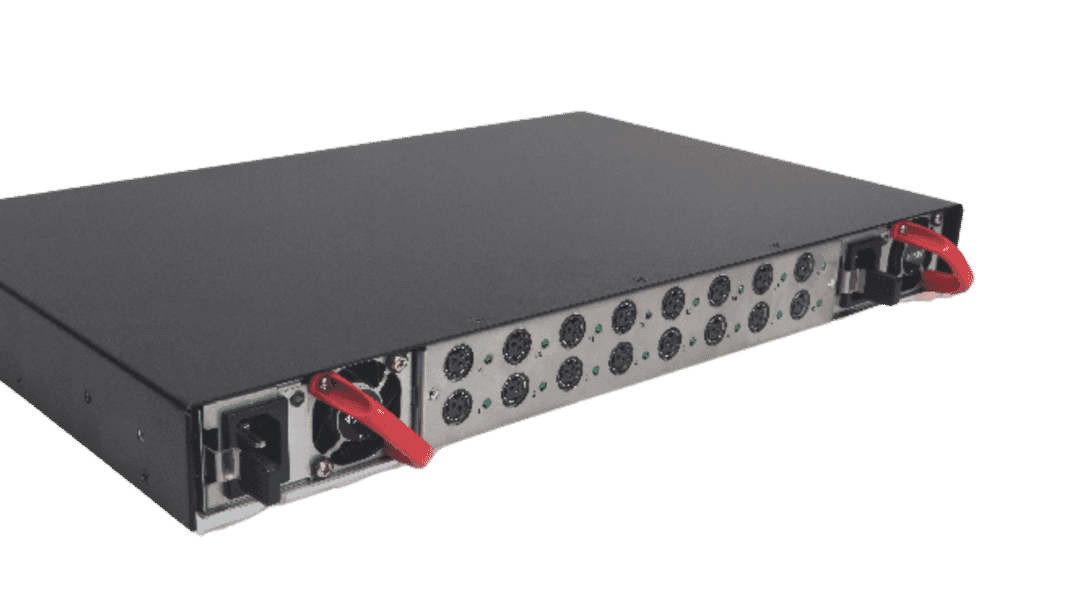

RED-PSU PRO 1-8 has 8 separate, lockable power output ports. Each output is limited to a maximum of 30W at 12V and each uses a locking connector to guard against accidental disconnection.
High Reliability
Conversion from the mains AC supply to low voltage DC occurs within one switched mode 495W power module, which slots into the rear of the RED-PSU PRO chassis. A single power module is rated at 900,000 hrs MTBF and this can easily meet the needs of 8 ports.
Protection
At start up, RED-PSU PRO enables each of the power outputs in sequence to reduce the instantaneous load on the power modules. After start up each power output is protected by overlapping safety features that guard against excess demand by any connected device.
Web Interface Control
The unit is controlled and monitored via a web interface. Temperature, fan speeds and individual current measurements are viewable and each output can be individually controlled. Web interface security is by HTTP digest authentication (RFC 2617) with username and password as requested information.
REST API
A REST (Representational State Transfer) API is available with all functionality to which authorized 3rd party control systems can interface.
12V to 5V converter for 5V products
Many existing Adder devices are powered from 5V supplies. An optional compact converter dongle allows 5V products to be used with the RED-PSU PRO, including the ADDERLink® INFINITY range.
