ADDER® RED-PSU PRO2-8

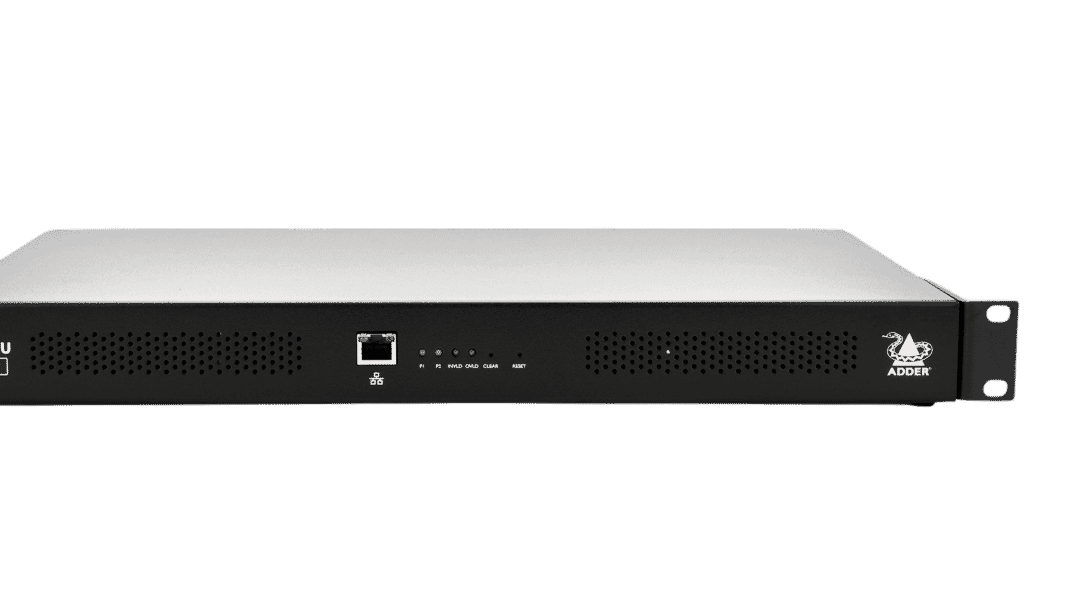

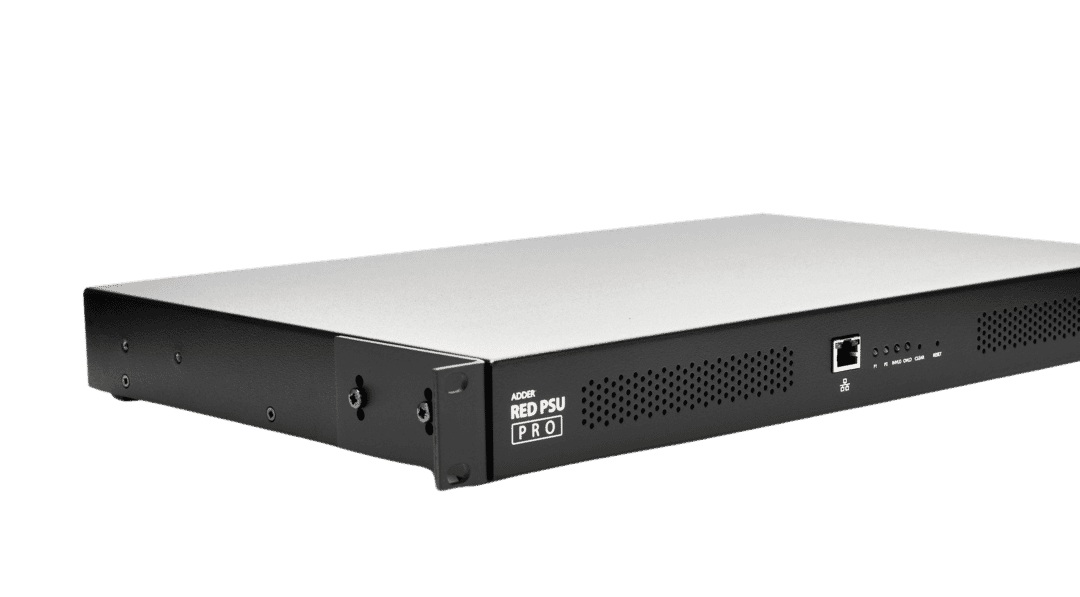

ADDER® RED-PSU PRO2-8 provides your installation with the power to grow on demand. Housed within a 1U 19-inch rack mount module, RED-PSU PRO delivers 8 power 12VDC outputs with fully redundant and load balanced hot swappable power modules, with remote management.

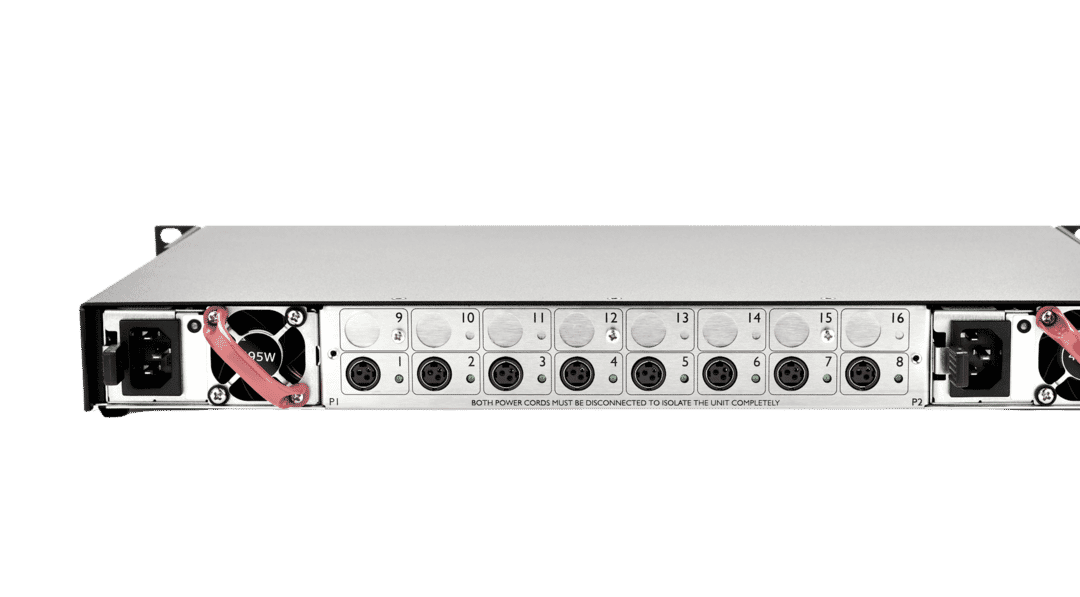

8 Port Power Outputs
RED-PSU PRO2-8 has 8 separate, lockable power output ports. Each output is limited to a maximum of 30W at 12V and each uses a locking connector to guard against accidental disconnection.

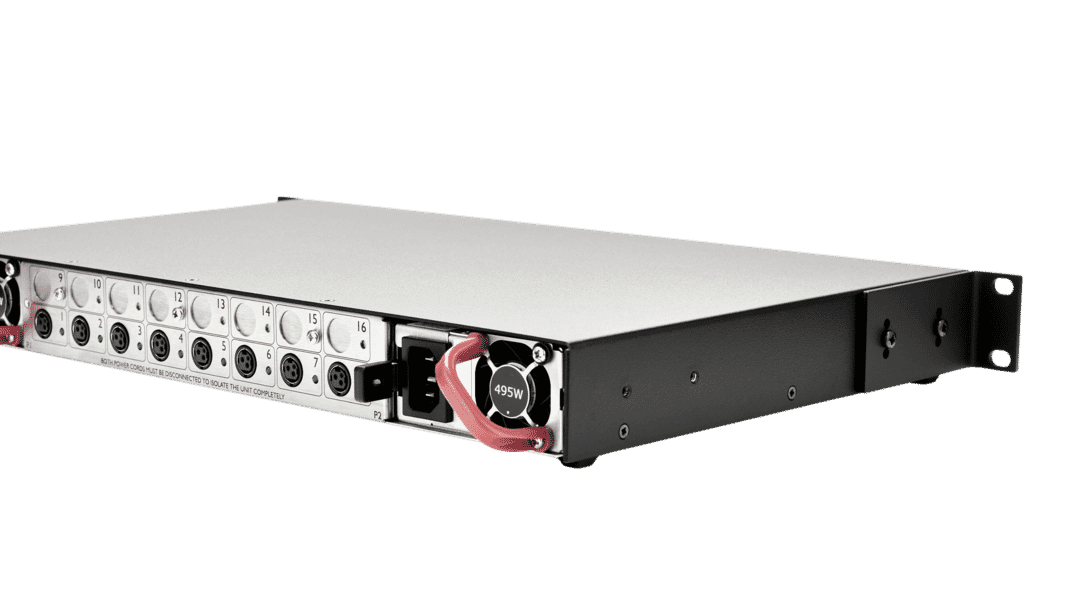

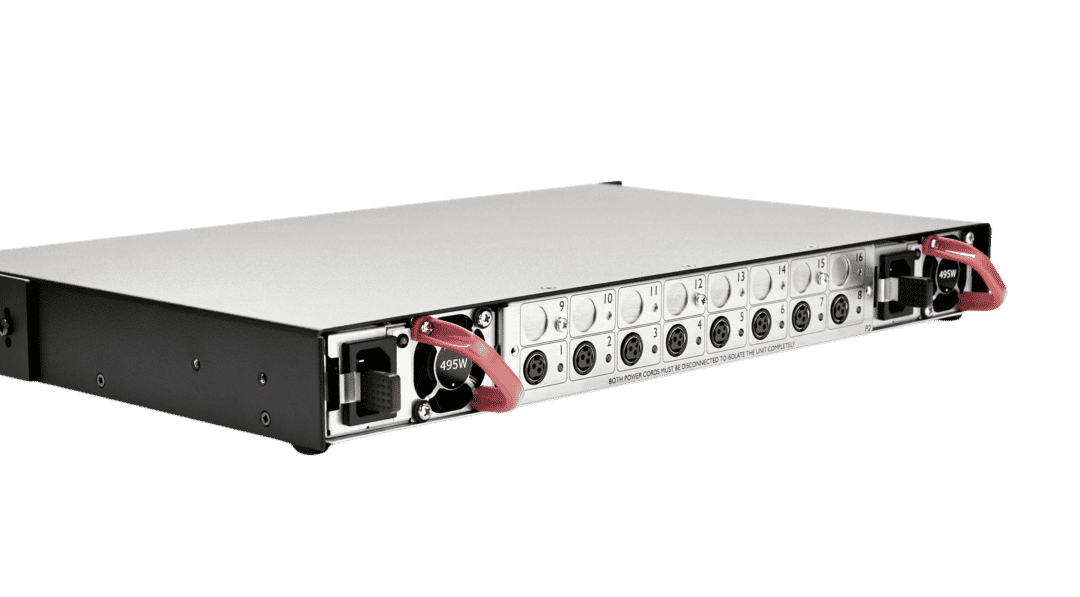

Hot Swappable
The unit has two switched mode 495W power modules. A single power module can easily meet the needs of 8 ports. In normal operation, the load is intelligently balanced between them on an equal basis; with full load transferring immediately to one should the other cease operation.
High Reliability
Conversion from the mains AC supply to low voltage DC occurs within either one, or two switched mode 495W power modules, which slot into the rear of the RED-PSU PRO chassis. A single power module is rated at 900,000 hrs MTBF and this can easily meet the needs of 16 ports.
Protection
At start up, RED-PSU PRO enables each of the power outputs in sequence to reduce the instantaneous load on the power modules. After start up each power output is protected by overlapping safety features that guard against excess demand by any connected device.
Web Interface Control
Temperature, fan speeds and individual current measurements are viewable and each output can be individually controlled. Web interface security is by HTTP digest authentication (RFC 2617) with username and password as requested information. A REST (Representational State Transfer) API is available.
12V to 5V converter for 5V products
Many existing Adder devices are powered from 5V supplies. An optional compact converter dongle allows 5V products to be used with the RED-PSU PRO, including the ADDERLink® INFINITY range.
