ADDERLink ipeps VGA Dual Access

Dual access remote server management that allows secure remote computer access using your standard IP network

ADDERLink ipeps Dual Access

Overview

The ADDERLink® ipeps VGA Dual Access enables you to remotely access and control your critical computing hardware using your standard IP network. KVM ports are also provided for local console access. KVM connections are VGA and PS/2. Using RealVNC client software, computers outside the network can be remotely and securely accessed.

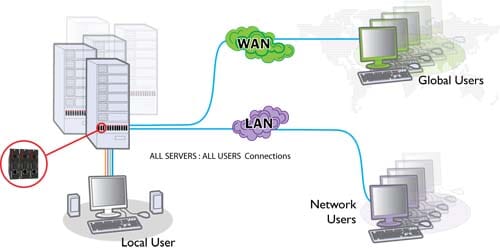

  • Dual access: the unit can be accessed by one local user and four remote users at any one time
  • User management: up to sixteen user profiles can be created with defined access rights
  • In-built security measures: compliant with universal enterprise grade security standards (AES 256 bit encryption and RSA 2048 bit public key authentication) from RealVNC



Product codes
AL-IPEPS-DA
ADDERLink ipeps Dual Access

Product Features

  • Dual access: the unit can be accessed by one local user, in addition to four remote users at any one time
  • RealVNC server: up to four users can remotely and securely access computers outside your network, with the possibility of creating sixteen user profiles with defined access rights
  • High performance video over VNC: Real VNC enables video resolutions of up to 1600x1200
  • USB and Virtual media support: engineered to act as a conduit through which data can be passed so that files can be transferred via IP onto the ipeps and onto the target computer by means of a virtual media port
  • Choice of power source: can be powered from two PS2 or USB cables or independently from an external 5V power source
  • Independent operation: maintain full control even during boot up, BIOS level or computer crash states, it will even work even if the controlled devices are not operational
  • ADDER.NET Enterprise Management Software: provides a centralised, secure and intuitive user access management interface, where up to sixteen user profiles with defined access rights can be created

Specification

Video

Supports standard PC, Sun and Mac video modes up to resolutions of 1600 x 1200 with scalable viewer

Approvals / Compliance

  • CE
  • FCC

Standards

USB1.1 (Low and Full Speed)

Cable Requirements

CATx

Environmental

0 - 40 deg C / 32 to 104 deg F

Connectors – Remote Unit

Four PS2 ports

Video: two VGA ports

Ethernet: RJ45 10/100 auto sensing

Mechanical

IPEPS 120mm/4.72 (w), 27mm/1.06 (h), 75mm/2.95 (d), 0.34kg/0.76lbs

Power

Two USB cables or independently from an external 5V power source 100-240 VAC 50 - 60Hz

Software

All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc


Associated products

ADDERLink ipeps+ HDMI

Part of the ADDERLink® ipeps range, the ipeps+ enables you to remotely access and control your critical computing hardware using your standard IP network. Using RealVNC client software, computers outside the network can be remotely and securely accessed.

ADDERLink ipeps DVI

The ADDERLink® ipeps DVI enables you to remotely access and control your critical computing hardware using your standard IP network. KVM connections are DVI and USB. Using RealVNC client software, computers outside the network can be remotely and securely accessed.

ADDERLink ipeps VGA

The ADDERLink® ipeps VGA enables you to remotely access and control your critical computing hardware using your standard IP network. KVM connections are VGA and PS/2. Using RealVNC client software, computers outside the network can be remotely and securely accessed.

Product Gallery

Downloads

Firmware updates
Product brochures
Product datasheets
Where to buy

Adder products are purchasable through our key technology partners. You can find a partners on our where to buy page.

Where to buy
Ordering information

AL-IPEPS-DA-XX: IPEPS DUAL ACCESS


XX= Mains Lead Country Code

UK = United Kingdom

US = United States

EURO = Europe

AUS = Australia

JP = Japan

CN = China
