ADDERLink® XD614

A high-resolution quad-head KVM extender. High definition video, USB2.0 and audio are transmitted on a single CATx or fiber cable.

xd614_noref

Overview

The ADDERLink® XD614 is a high performance KVMA (Keyboard, Video, Mouse and Audio) extender that is designed to provide reliable and real-time access to critical computers – regardless of the location, whilst maintaining the same user desktop experience.

Developed for enterprise organizations and high-pressure control rooms, it combines the simplicity of true plug and play and high performance HD KVM extension, resulting in superior functionality and flexibility in a cost-effective, reliable and
straightforward solution.

  • Quad-head HD 60 video, USB2.0 (HID) and audio are transmitted on a single CATx or fiber cable.
  • Point-to-point protocol for ultra-low latency.
  • Flexibility between copper and fiber connectivity.
  • Adder’s USB emulation ensures reliable computer bootup.
Product codes
XD614P-DP
ADDER_XD614_DS_DIAGRAM

Product Features

High-resolution video, real-time control
The system supports resolutions up to 1920x1200 @ 60Hz using 8 bits per color and 4:4:4 chroma sampling. Up to four heads are transmitted within a single cable by utilizing DisplayPort™ 1.2 MST (Multi-Stream Transport) technology.

Single cable
HD video, USB2.0 HID (human interface device) and audio are transmitted on a single CATx or fiber cable.

Up to 4km/2.5 mile extension distances
The ADDERLink XD614 supports both copper and fiber interfaces. It provides a range of up to 100m over a CAT6 cable link, and up to 4km over an optical fiber link.

Emulated USB2.0
Enables connection of any full and low speed USB HID from mouse and keyboards through to graphics tablets and jog shuttles.

EDID management
The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.

Plug and Play
The ADDERLink XD614 extender is delivered in a zero config. state so it works, without the need for drivers or software, as soon as it is connected.

Digital audio
Video: Encapsulates two channels of 24-bit, 192kHz sampled “Pulse-code modulation” (PCM) audio with each video signal.
USB: Two channels of 24-bit, 96kHz sampled PCM audio.
Analog: Two channels of 24-bit, 96kHz audio for Line in/out, microphone and headphone/speakers.

HD quality analog audio
HD audio quality (stereo audio, 24-bit sampled at 96kHz) is available for line in/out, microphone and headphone or speakers.

Serial communications
RS232 can be passed between the units to a maximum baud rate 115K2 with RTS/CTS flow control.

Specification

Video resolutions
  • The system supports up to 4 heads at resolutions to a maximum of 1920x1200 @ 60Hz

Software compatibility

  • All known operating systems. No drivers required.

Extension technology

  • 5Gb/s CATx or 10Gb/s fiber with ultra low latency adaptive video stream compression.

Connections
Local unit - Transmitter (TX)

  • 4 x Tri-color status LEDs
  • DisplayPort™ in and local pass-through out
  • 2 x USB2.0 Type B
  • Line in and out analog audio
  • RJ12 serial port
  • RJ45 and SFP+ ports

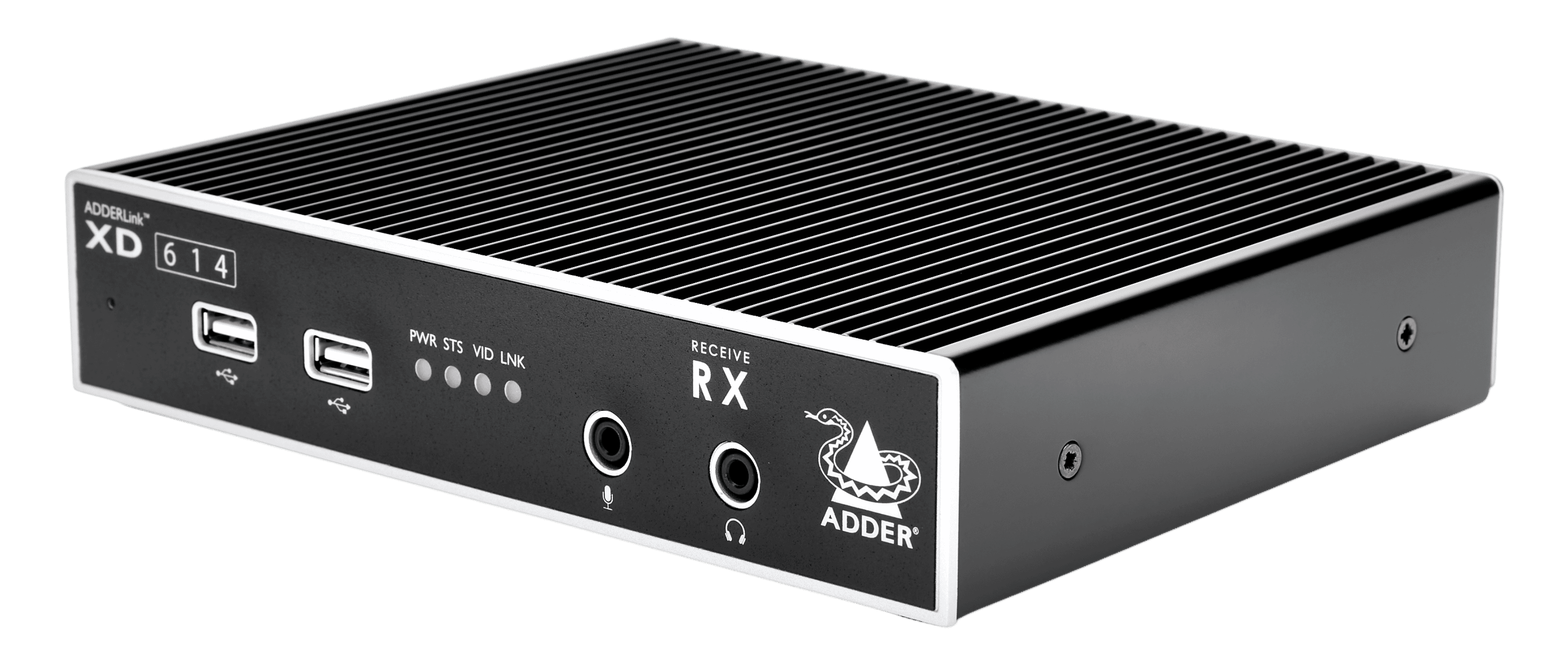

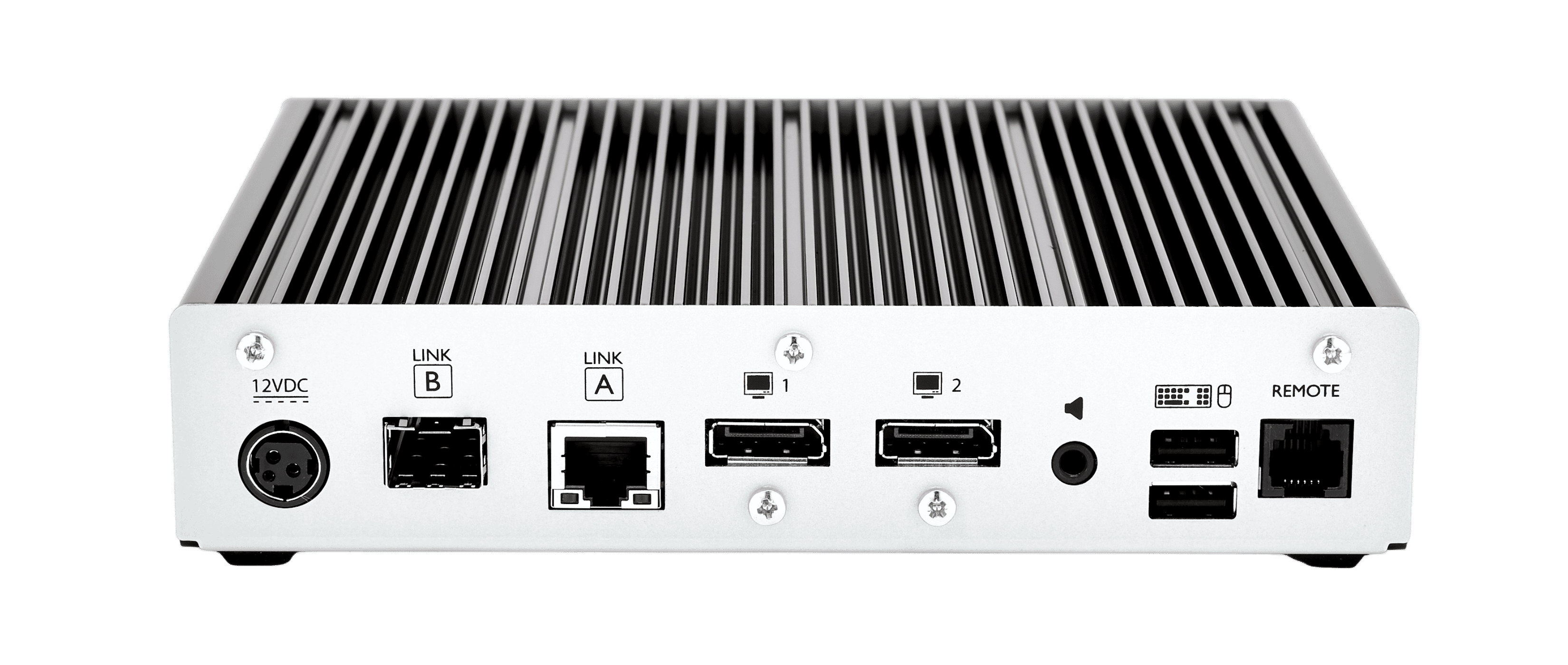

Remote unit - Receiver (RX)

  • 4 x Tri-color status LEDs
  • 2 x DisplayPort™ out
  • 4 x USB2.0 full speed Type A
  • Mic in, headset and speaker out
  • RJ12 serial port
  • RJ45 and SFP+ ports


Physical Design
Robust metal construction

  • TX and RX: 186mm/7.32” (w), 39mm/1.54” (h), 148mm/5.83” (d)
  • TX: 1.29kg/2.84lbs•RX: 1.24kg/2.73lbs

Power supply

  • 100-240 VAC, 47/63Hz
  • 12 VDC 18W output from power supply unit
 Operating temperature
  • 0ºC to 40ºC/32ºF to 104ºF

Storage temperature

  • -10ºC to 50ºC/14ºF to 122ºF

Humidity

  • 0% to 80% (non-condensing)

Approvals

  • UKCA, CE, FCC, ICES, RCM, cULus

Extension Distance

ADDERLink™ XD600 Extension Distance











Note:

SM (Single-Mode Fiber)
MM (Multi-Mode Fiber)
CAT6 is recommended for CATx extensions. CATx extensions are limited to 2 patch connections.  Patch cables should be CAT6 or better.
Associated products
Thumbnail

ADDERLink® XD641

The ADDERLink® XD641 is a high performance KVMA (Keyboard, Video, Mouse and Audio) extender that is designed to provide reliable and real-time access to critical computers – regardless of the location, whilst maintaining the same user desktop experience.

View product
Thumbnail

ADDERLink® XD642

The ADDERLink XD642 is a high performance KVMA (Keyboard, Video, Mouse and Audio) extender that is designed to provide reliable and real-time access to critical computers – regardless of the location, whilst maintaining the same user desktop experience.

View product
Thumbnail

ADDERLink® XD612

The ADDERLink® XD612 is a high performance KVMA (Keyboard, Video, Mouse and Audio) extender that is designed to provide reliable and real-time access to critical computers – regardless of the location, whilst maintaining the same user desktop experience.

View product
Related accessories
Thumbnail

ADDER SFP-MM-LC-10G

Multi-mode 10Gbps SFP+ with LC connectors. This transceiver uses a 850 nm VCSEL laser and is designed to transmit and receive optical data over multi-mode optical fiber for link length 300m.

Optical interface compliant to IEEE 802.3ae

RoHS-6 compliant (lead free)

View product
Thumbnail

ADDER SFP-SM-LC-10G

Single mode 10Gbps SFP+ with LC connectors. This transceiver uses a 1310 nm DFB laser and is designed to transmit and receive optical data over single mode optical fiber for link length 10km.

Optical interface compliant to IEEE 802.3ae

RoHS-6 compliant (lead free)

View product
Where to buy

Adder products are purchasable through our key technology partners. You can find a partners on our where to buy page.

Where to buy
What's in the box

1x TX and RX pair
2x Power supply unit with country specific mains cable
1x DisplayPort™ cable (VSCD18)
1x USB cable (VSC24)
1x Audio 2m/6ft cable
1x Quick start guide

Ordering information

XD614P-DP-XX: ADDERLink XD614 - HD quad-head extender

XX = Mains Lead Country Code:

UK = United Kingdom
US = United States
EURO = Europe
CN = China
JPN = Japan
AUS = Australia
