ADDERView 4 PRO DisplayPort

KVMA switch that shares digital video and USB between up to four computers through a DisplayPort connector

ADDERView 4 PRO DisplayPort

Overview

Part of the ADDERView® PRO range, the AV4PRO DisplayPort is designed to enable four computers equipped with DisplayPort technology to be controlled from a single KVM console. This four-port switch is also available in DVI or VGA variants.

  • Access multiple applications: allow one display, keyboard and mouse to switch control between up to four computers
  • Fluid and Reliable USB Switching: Adder’s USB True Emulation ensures fast and reliable switching
Product codes
AV4PRO-DP
ADDERView 4 PRO DisplayPort KVM

Product Features

  • High resolution video: supports 2560 x 1600 resolution at 60Hz refresh rate and 10 bits per color, 1920 x 1200 resolution at 120Hz refresh rate, and Full HD monitors at 1920 x 1080 resolution and 60Hz refresh rate at 12 bits per color without latency, all over standard cables
  • Extended DDC EDID profile: ensures that the graphics card is always optimized to work with your screen
  • USB True Emulation: USB 2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers
  • Independent USB device selection: switching options enable the operator to use the keyboard and mouse on one computer whilst the USB peripherals are connected to other ones
  • Channel selection options: switch using selectable keyboard hotkeys, three button mice or the front panel controls, or add a RC4 remote
  • Broad USB 2.0 HID Support: a range of USB devices can be connected, including printers, scanners, and non-standard human interface devices
  • ‘Options’ port for control, synchronisation and upgrade: port allows remote switching using simple ASCII codes; units to be switched in synchrony to create a multi video head switching system; and firmware upgrades, all through the same port

Specification

Video Resolutions

Supports 2560 x 1600 resolution at 60Hz refresh rate and 10 bits per color, 1920 x 1200 resolution at 120Hz refresh rate, and Full HD monitors at 1920 x 1080 resolution and 60Hz refresh rate at 12 bits per color without latency, all over standard cables

Audio

3.5mm stereo jack

Approvals / Compliance

  • CE
  • FCC

Standards

USB 2.0 type B

Cable Requirements

All standard cables

Environmental

0 to 4 deg C / 32 to 104 deg F

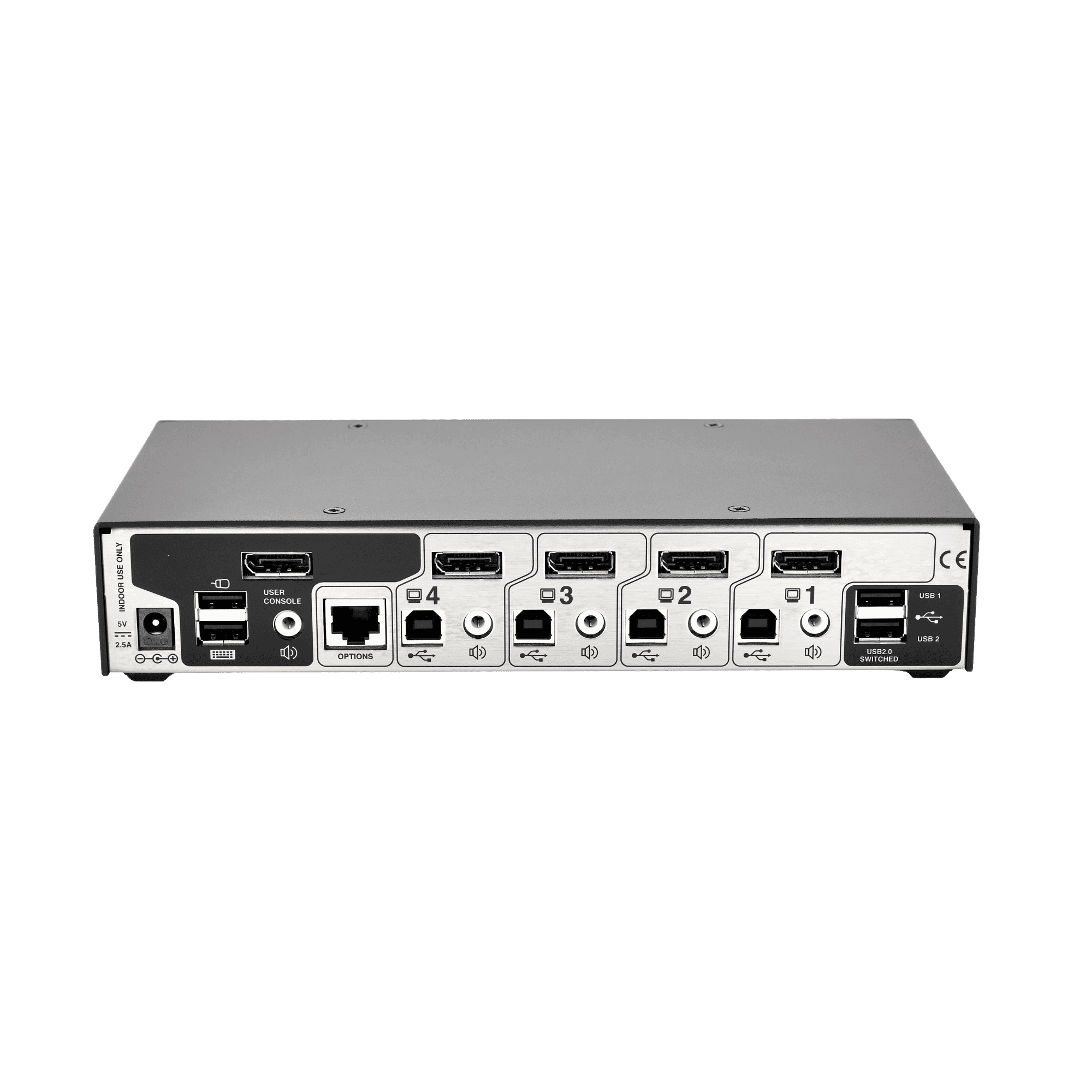

Connectors – User

Video: Display Port, 2 x USB type A, Switched USB: 2 x USB2.0 type A, Audio: 3.5mm stereo jack

USB 2.0 type B, DisplayPort, 3.5mm stereo jack

Connectors – Computer

Options (flash upgrade, sync with other AV4PRO-DP and RS232 triggered power switches): Modular 10P10C

Mechanical

1U high metal case 233mm (w), 115mm (d), 44mm (h)

Power

2.5mm DC jack (power adapter included),100-240VAC 50/60Hz input to power adapter, 5VDC 2A output from power adapter

Software

Operates with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc

Associated products

ADDERView 4 PRO VGA

Part of the ADDERView® PRO range, the AV4PRO VGA is KVMA switch designed to enable four multi-head computers to be controlled from a single KVM console using analog VGA video links. This four-port switch is available in Multiscreen, DVI or DisplayPort variants.

ADDERView 4 PRO DVI

Part of the ADDERView® PRO range, the AV4PRO DVI is KVMA switch designed to enable four multi-head computers to be controlled from a single KVM console. This four-port switch is available in eight-port (AV8PRO), Multiscreen, VGA or DisplayPort variants.

ADDERView 8 PRO DVI

Part of the ADDERView® PRO range, the AV8PRO DVI is KVMA switch designed to enable eight computers to be controlled from a single KVM console using either dual link DVI or high definition analog video links. This eight-port switch is available in four-port (AV4PRO DVI), VGA or DisplayPort variants.

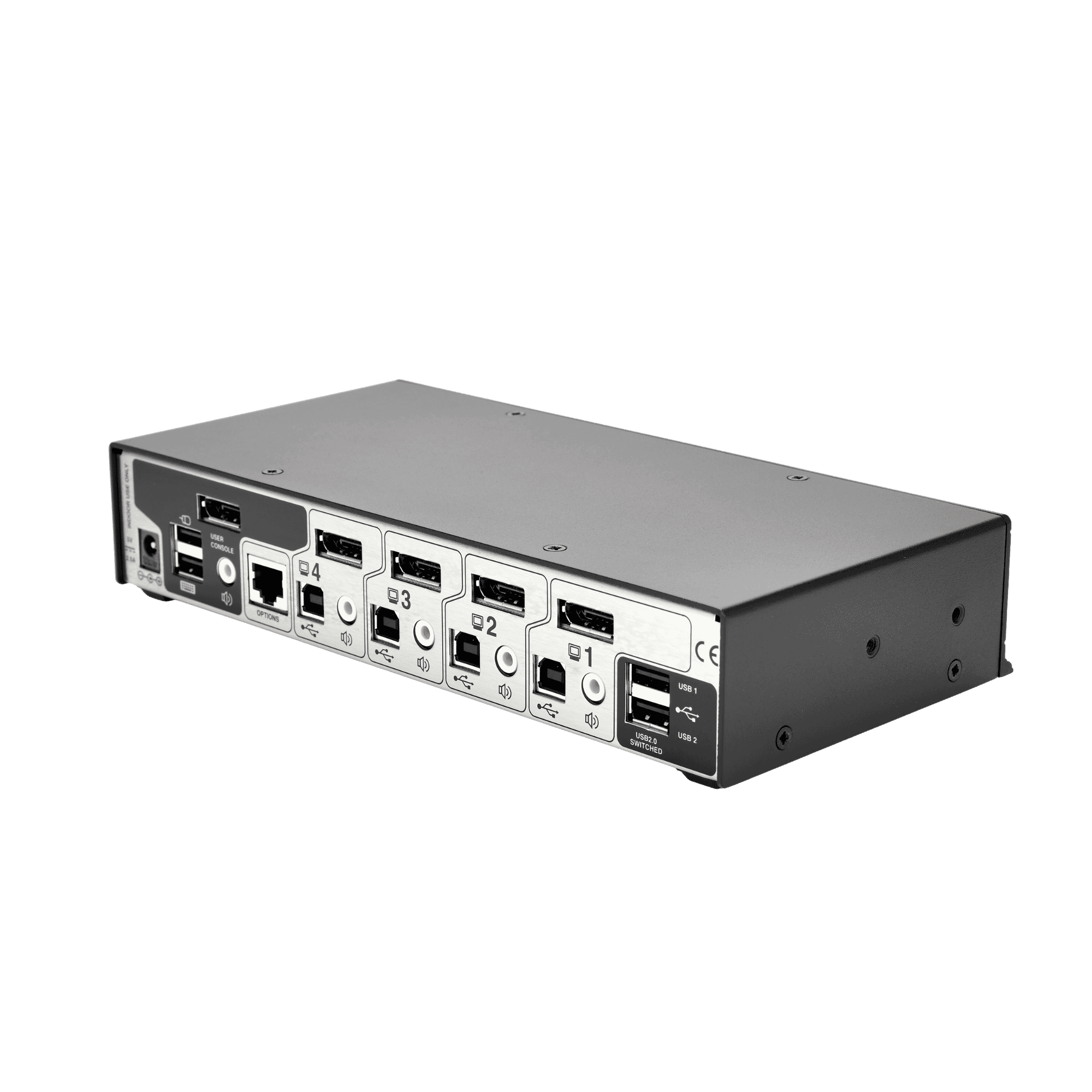

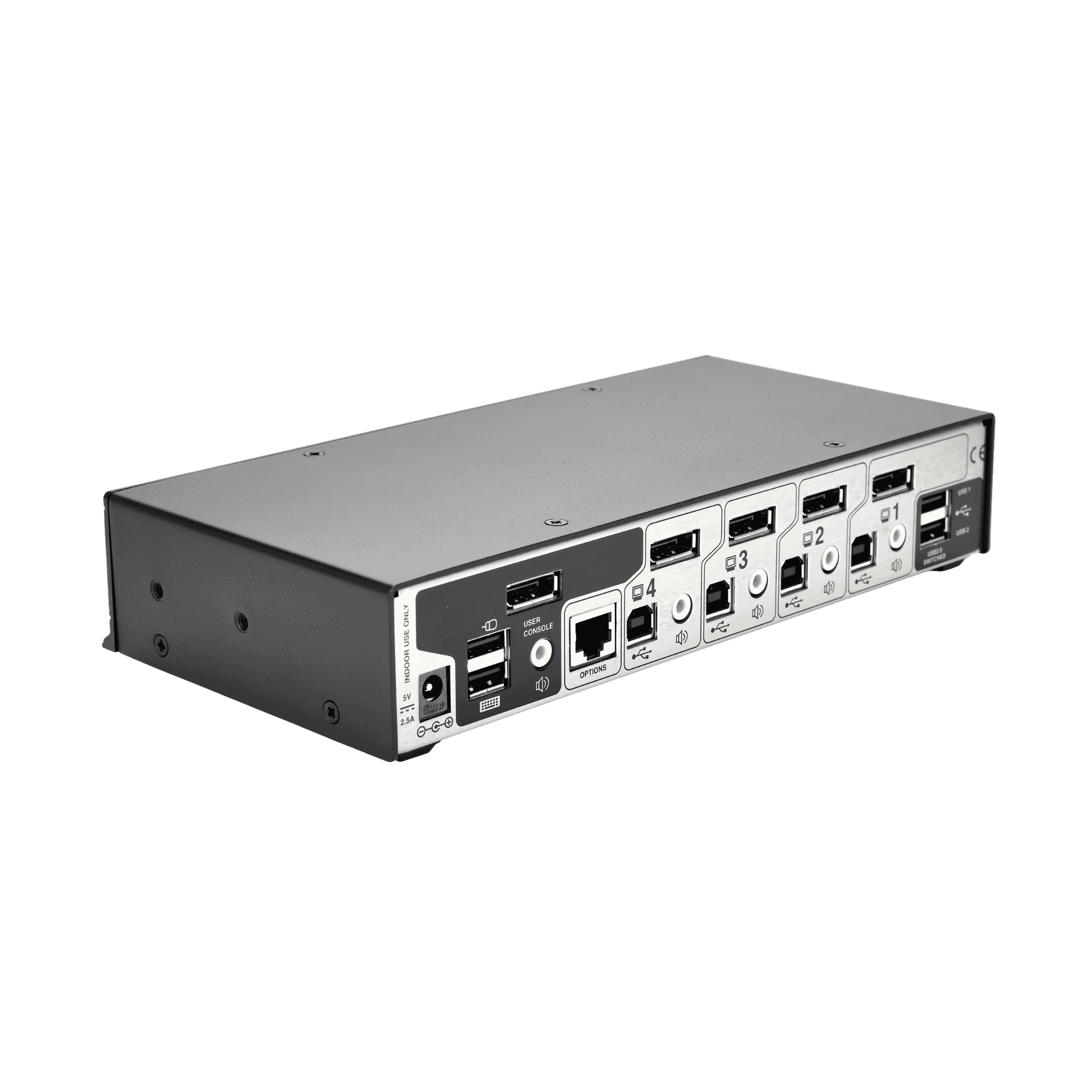

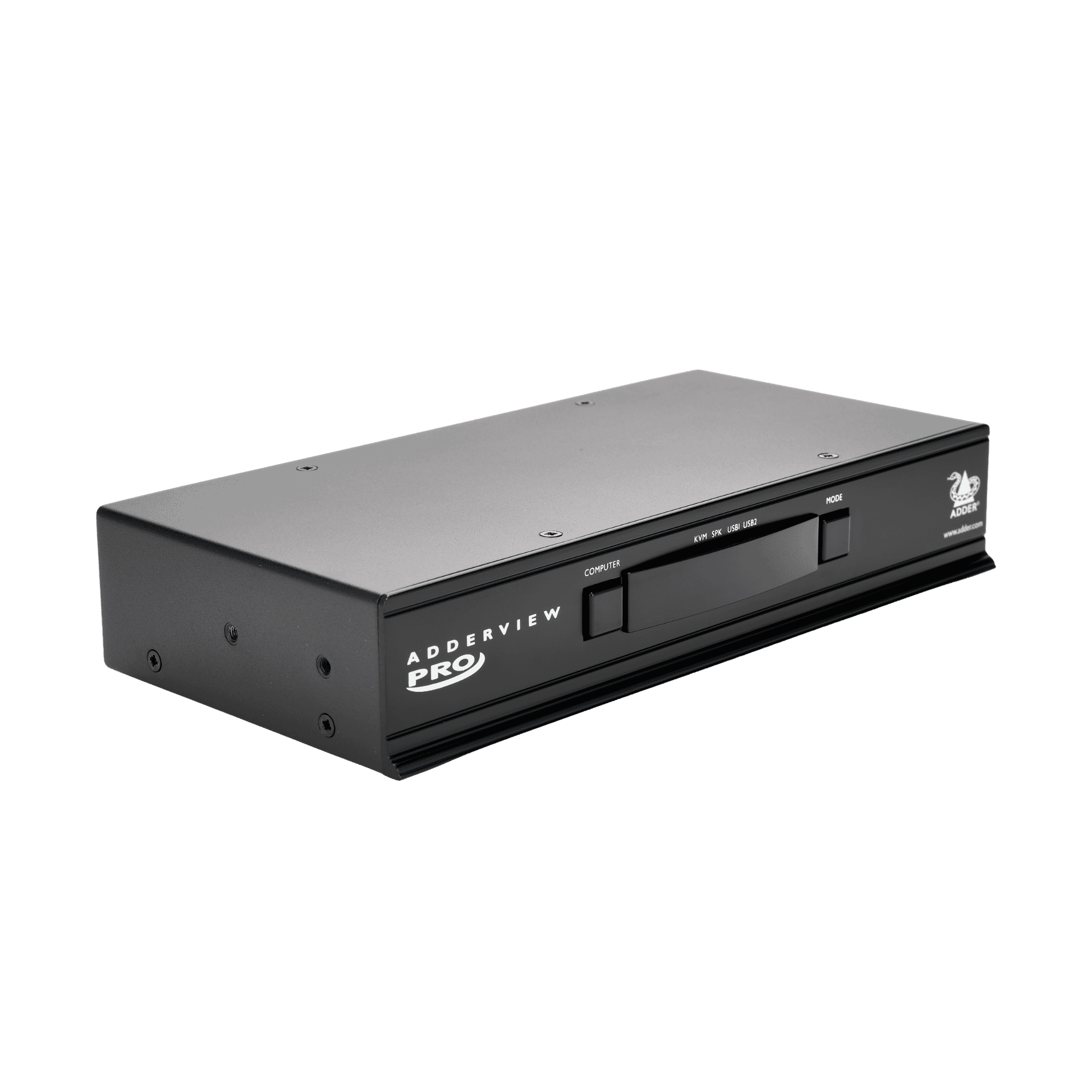

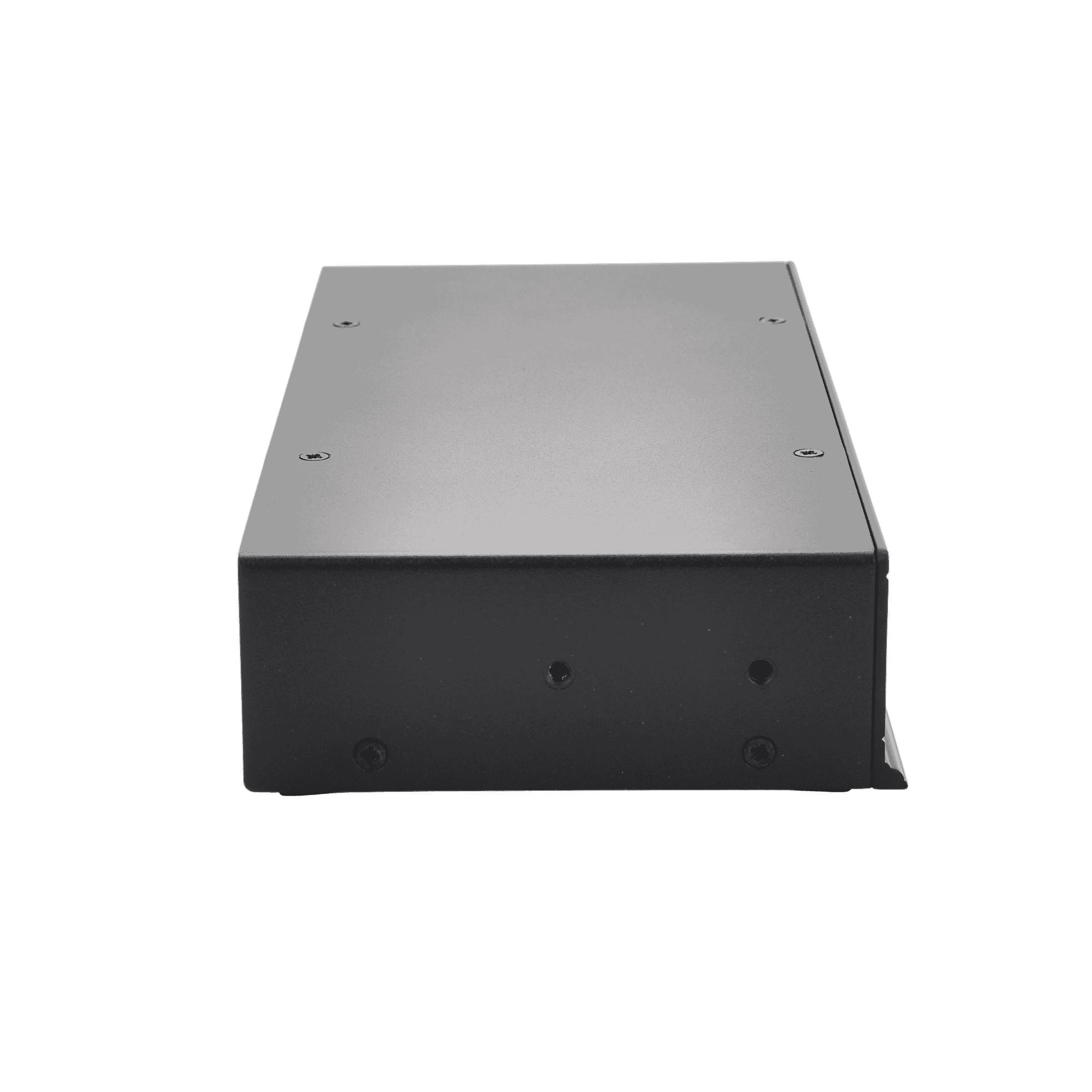

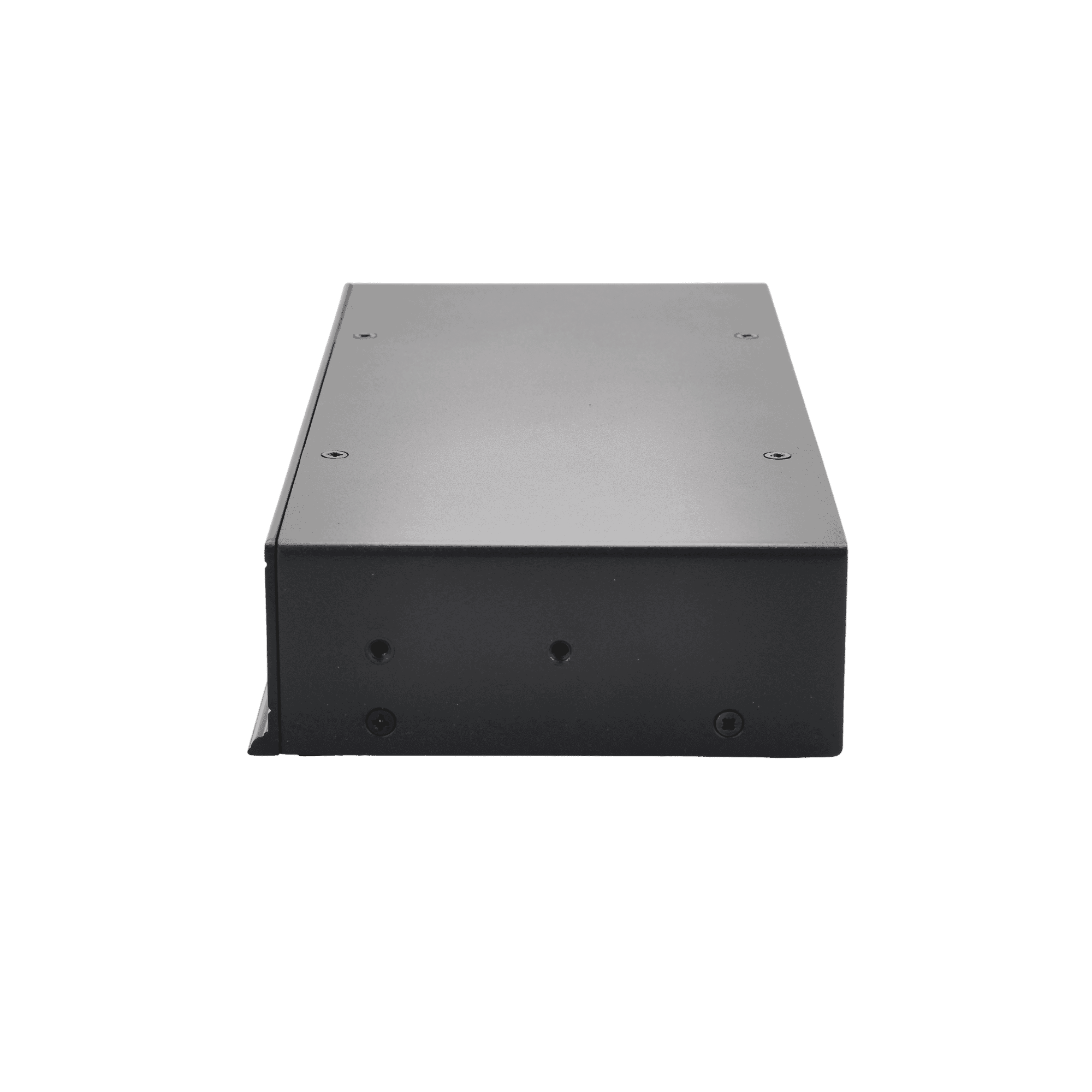

Product Gallery

Downloads

Product manual
Firmware updates
Where to buy

Adder products are purchasable through our key technology partners. You can find a partners on our where to buy page.

Where to buy
Ordering information

AV4PRO-DP-XX



XX = Mains Lead Country Code:

UK = United Kingdom

US = United States

EURO = Europe

AUS = Australia

JP = Japan

CN = China
