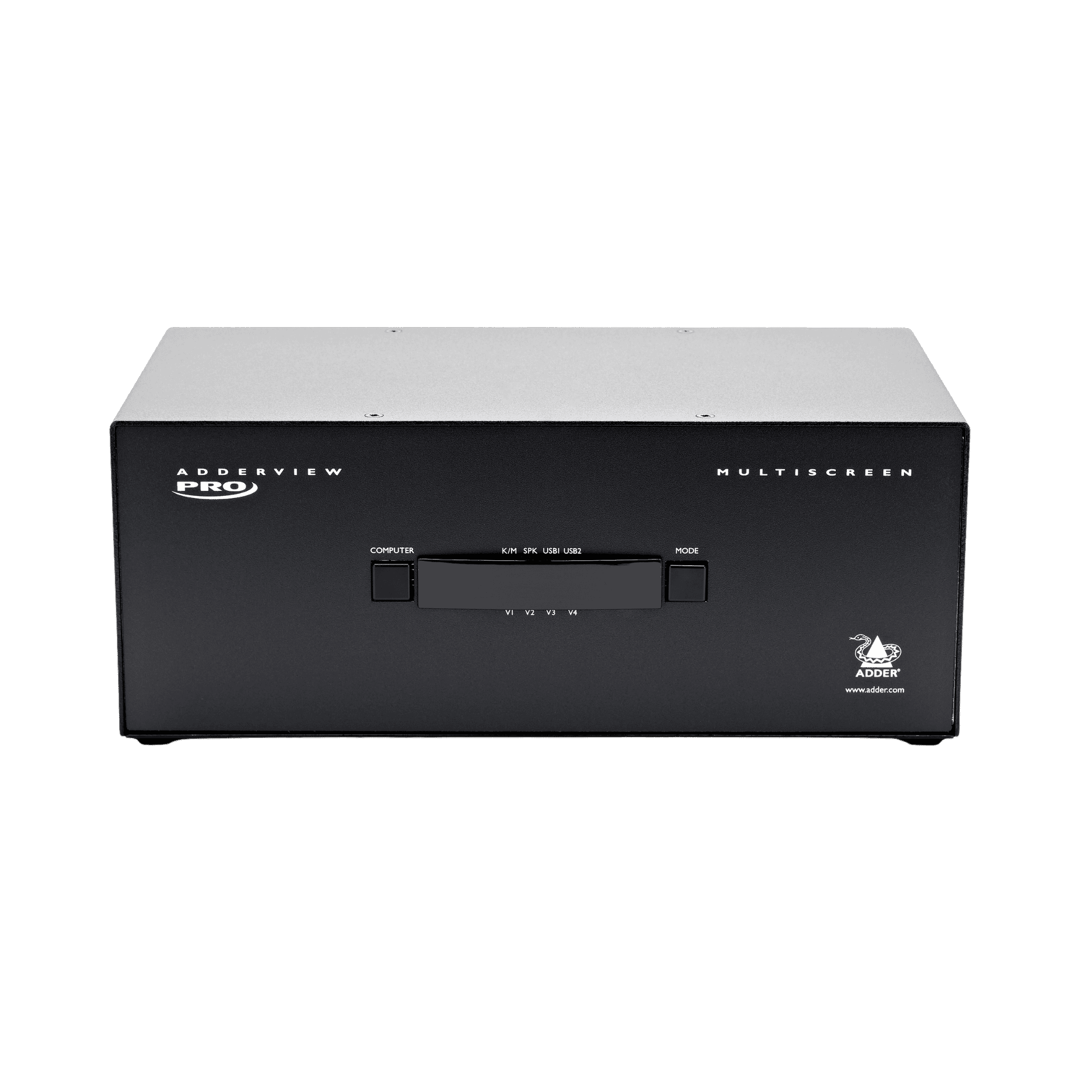

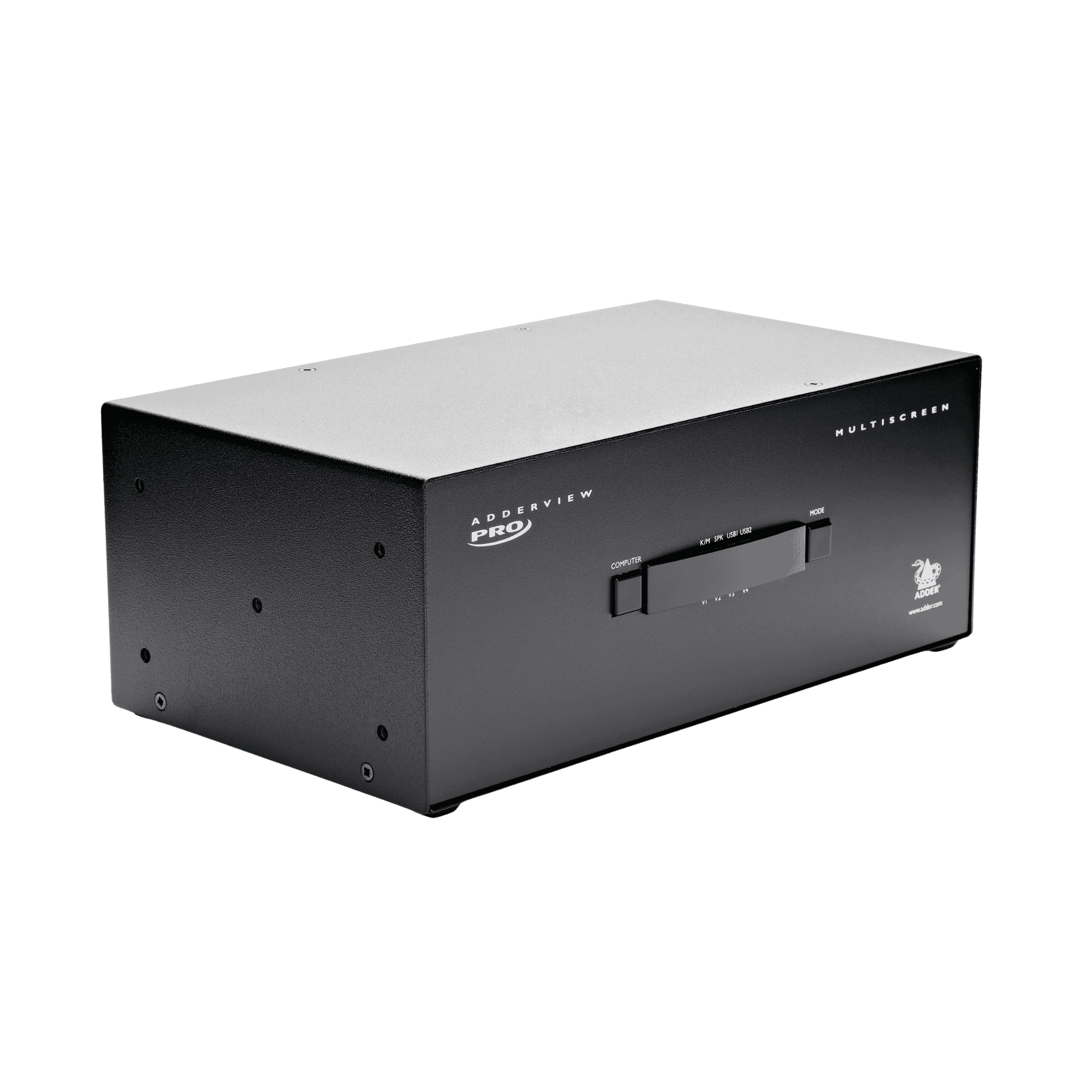

ADDERView® 4 PRO VGA DUAL
Enables four computers to be controlled from a single high resolution console using VGA connections. USB True Emulation technology enables USB HID devices to be continuously emulated to each computer for instantaneous and reliable hotkey switching. Option to attach selected peripherals to different computers.
High resolution video
VGA capabilities enable users to work at high resolutions including WUXGA (1920x1200) or 1920x1440.
Extended DDC EDID profile
Ensures that the graphics card is always optimized to work with your screen.
Hi-speed USB2.0 device support
A wide range of USB devices can be connected, including printers, scanners and non-standard human interface devices.
USB HID True Emulation
Enables full support for hotkey and mouse switching and use of any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles and joysticks.
Channel selection options
Switch using keyboard hotkeys, three button mouse, front panel controls or add an RC4 remote.
Independent peripheral selection
Switching options enable the operator to use the keyboard and mouse on one computer while the USB peripherals are connected to other ones.
Options port
Allows remote switching and firmware upgrades, all through the same port. Switching can be achieved using ADDER® RC4 remote or simple ASCII codes and units can also be linked to create a multi video head switching system.
Product Specification
Dual (AV4PRO-VGA-DUAL) Specification
Video Information (For 1 Screen)
| Maximum Resolution | 1920 x 1440 |
|---|---|
| Frame Rate | 60 |

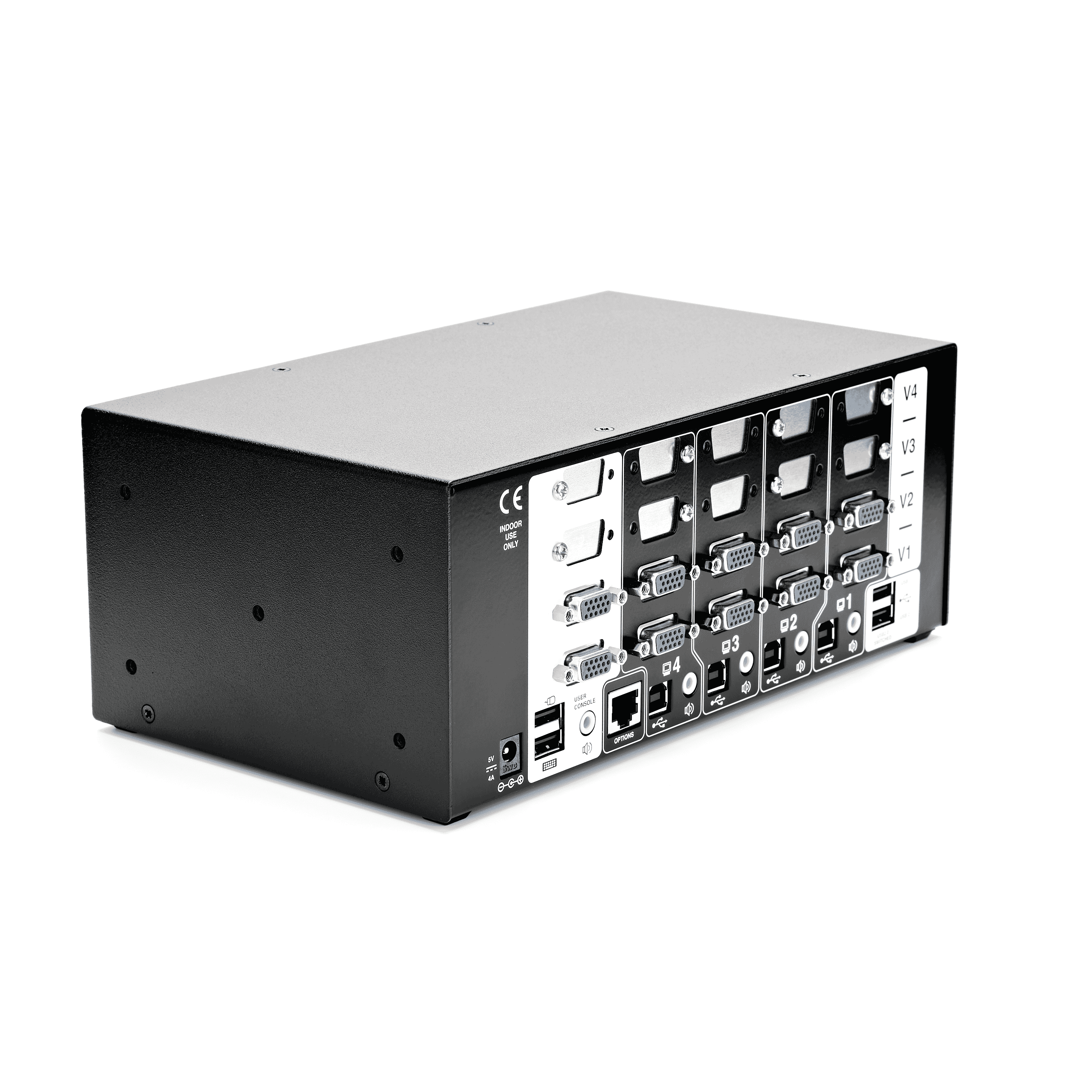

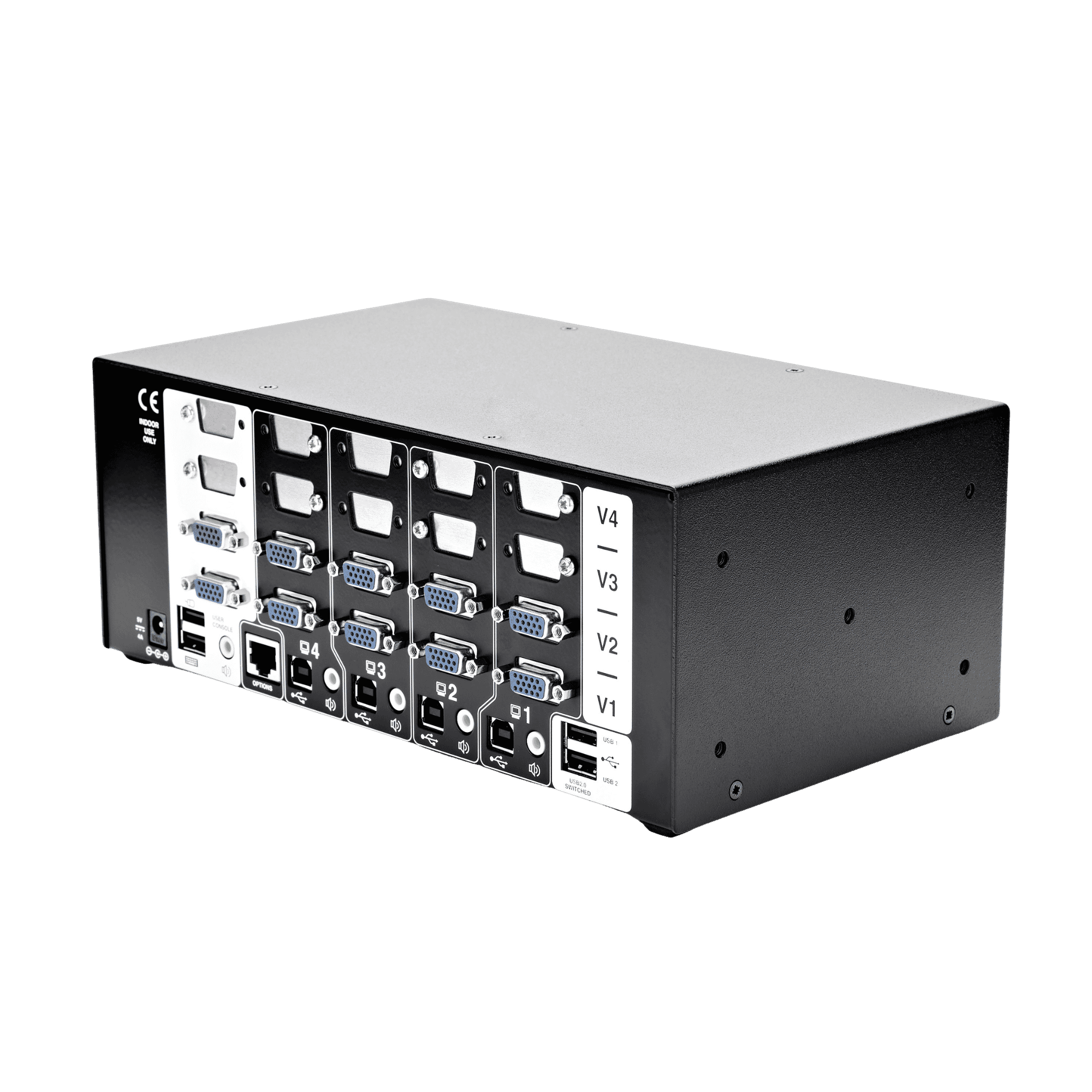

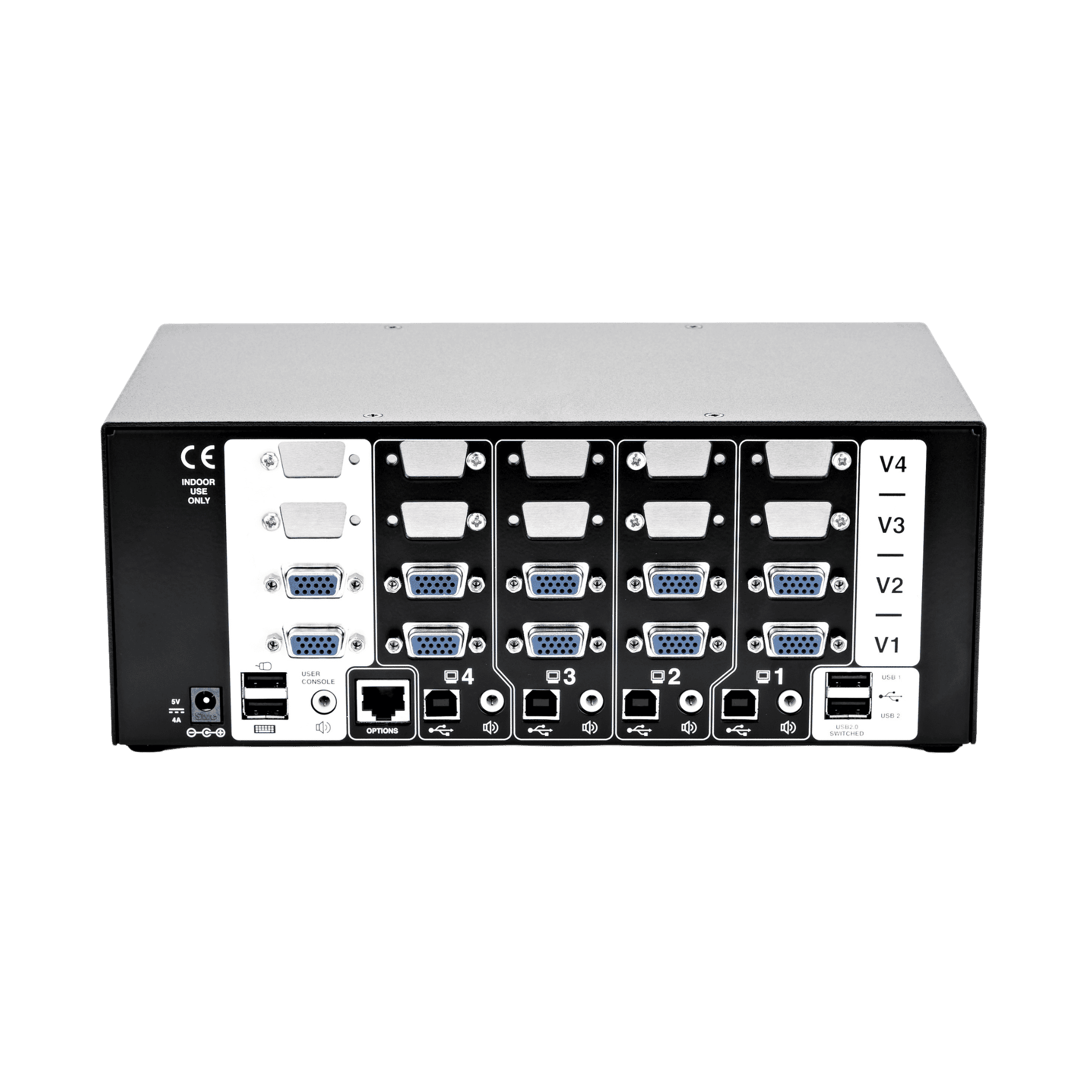

Computer Connections
| USB B | 4× 2.0 Transparent, High Speed |
|---|---|
| VGA | 8 |
Console Connections
| USB A | 2× 2.0 True Emulation (HID Only), High Speed |
|---|---|
| USB A | 2× 2.0 Transparent, High Speed |
| VGA | 2× |
Serial Ports
| Serial Connection | 1× |
|---|---|
| Serial Standard | RS232 |
| Serial Additional Information | Options port for switching, linking or upgrading |
| Serial Connection Type (console) | RJ48 (10p10c) |
Audio Connections
| Audio Type | Analog |
|---|---|
| Channels | 2 |
| Audio In Ports | 4× 3.5mm jack |
| Audio Out Ports | 1× 3.5mm jack |
| Audio Direction | Output only |
| Size (bit) | 0 |
| Speed (kHz) | 0 |
Network Support
| 10/100 Support | No |
|---|
Environmental
| Operating Temperature | 0 to 40 °C / 32 to 104 °F |
|---|---|
| Storage Temperature | 0 to 40 °C / 32 to 104 °F |
| Operating Humidity (%) | 5% - 95% (non condensing) |
| Storage Humidity (%) | 5% - 95% (non-condensing) |
| Altitude | 2000m / 6562ft |
| Mean Time Between Failure (MTBF) | 1,100,000 h |
| MTBF Standard | Telcordia SR332 Issue 4 March 2016 Calculated @ 55C |
| Temperature Regulation | Fanless |
Power Source
| 5V | 1× |
|---|---|
| Input Power Supply | 2.5mm Socket |
| Power Additional Information | 2.5mm jack 5VDC 2A |
Physical Design
| Construction Material | Robust metal case |
|---|---|
| U size | 2.5 |
| Width | 260mm / 10.2in |
| Height | 100mm / 3.9in |
| Depth | 150mm / 5.90in |

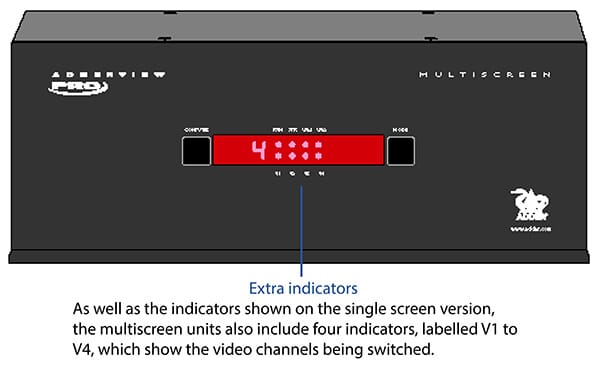

Front Panel Features
| Single color status LEDs | 4× |
|---|
Compatibility
| OS Compatibility | Windows, Linux, Sun OS, macOS, All known operating systems |
|---|
Approvals and Standards
| Approvals | CE, FCC, ICES |
|---|---|
| Standards | ANSI 63.4, EN55032 /CISPR 32, EN55035/CISPR 35, EN63000, FCC - CFR47 pt15a |
| Other | Cal Prop 65, China ROHS, EU REACH, UK REACH, TSCA PFAS Section 8(a)7, TSCA PBT Section 6(h) |
Ordering Information
| Code | Description |
|---|---|
| AV4PRO-VGA-DUAL-XX | ADDERView® 4 PRO VGA 4 port dual-head switch |
What's in the Box?
| 1× AV4PRO-DVI switch |
| 1× Power supply unit |
| 1× Country specific power cable |
| 1× Quick start guide |
