ADDERView® CCS-MV 4224

Command and control multi-viewer switch for sharing 4K video, keyboard and mouse, plus audio between four computers. Innovative hybrid DisplayPort™ and HDMI® input ports for flexible connectivity from a single unit.

CCSMV4224 Multiviewer KVM DisplayPort HDMI Switch - Front quarter view

Overview

The ADDERView® CCS-MV, a desktop multi-viewer switch, provides simultaneous, real-time 4K KVMA (Keyboard, Video, Mouse and Audio) access of up to four computers from a single workstation. Users can instantly take control of the target computer by simply moving the mouse between windows, providing the experience of a single desktop.

  • Directly connect a single workstation to four video, audio and USB sources
  • Access any number of sources on a network when combined with an ADDERLink® INFINITY IP KVM Matrix
  • Seamless cursor interaction with sources as if using a single desktop
  • Multiple, color-coded screen configurations for fast channel identification, real-time data visualization and improved decision making
  • Enhanced, decluttered workspace ergonomics and improved situational awareness
CCSMV 4224 KVM Multi-Viewer Integrated command and control center diagram
Request demo

Product Features

  • Video performance
    Up to UHD 4K video output resolution is generated, thus providing a crystal clear display, even with a quad window layout.
  • Automatic switching
    Natural automatic switching of KVM and audio control between ports without the need to press any buttons. Simply move the mouse between windows.
  • Flexible screen layout
    Use preset window layouts, or move and resize windows to create custom layouts. Dual output ports allow for extended or duplicated displays.
  • Channel identification
    Reduce the chances of operator error by displaying a meaningful name for each channel. The port LED and window border colors may also be configured.
  • USB performance
    Emulated USB2.0 ports for fast switching of HID (Human Interface Devices), such as keyboard and mouse. Hi-speed USB3.0 switched port for mass storage and isochronous devices, including flash drives, headsets and web cams.
  • Flexible computer connections
    Connect to a combination of single and dual-head computers.
  • Analog audio
    Bi-directional analog audio. An audio ‘Hold’ facility assigns the audio connection to a specific computer whilst the KVM is switched to another computer. Useful when a user needs to talk to one channel, whilst working on another.
  • Digital audio mixer
    Option to combine audio signal from multiple HDMI® channels. Adjust the volume level for each channel.
  • Copy & Paste
    Copy text between Windows 10 computers using standard keyboard, Ctrl+C and Ctrl+V commands.
  • Remote control
    Select layout presets and input channels remotely for control room applications where the displays are used to aid situation awareness.
  • Matrix integration
    The ADDERView® CCS-MV 4224 may be connected to the ADDERLink® INFINITY matrix system. This allows the user to control any 4 computers connected to the matrix network.

Specification

Approvals / Compliance

  • UKCA, CE, FCC class A, TUV US & Canada

Video Resolutions

  • The system supports video resolutions up to UHD 4K (3840 x 2160 @ 30Hz) at 4:4:4 with 8 bits per color

Software Compatibility

  • Windows®, Linux®, Mac host computer OS’s

Console Connections

  • 2x digital ports for HDMI®
  • 2x USB 2.0 full speed Type A
  • 4x USB3.0 Hi-speed Type A
  • Audio 3.5mm/0.13” jack for microphone and headphones
  • RJ12 serial port

Computer Connections

  • 4x dual ports for DisplayPort™/HDMI®
  • 4x USB2.0 full speed Type B
  • 4x USB 3.0 Hi-speed Type B
  • Audio 3.5mm line in and out

Front Panel

  • Audio hold button and status LED
  • 4x Channel selection button and status LED
  • 212 x 104 E-paper status display

Physical Design

  • Robust metal construction
  • 344mm/13.54”(W) x 44mm/1.73”(H) x 161mm/6.34”(D)
  • Weight: 1.6kg/3.53lbs

Power Supply

  • 100 - 240V AC, 47/63Hz
  • 12V DC 30W output from power supply unit

Environmental

  • Operating temperature: 0ºC to 40ºC/ 32ºF to 104ºF
  • Storage temperature: -20º to 60ºC/ -4º to 140ºF
  • Humidity: 0-80% RH, non-condensing
  • MTBF: 84k hours @ 40ºC

Product Gallery

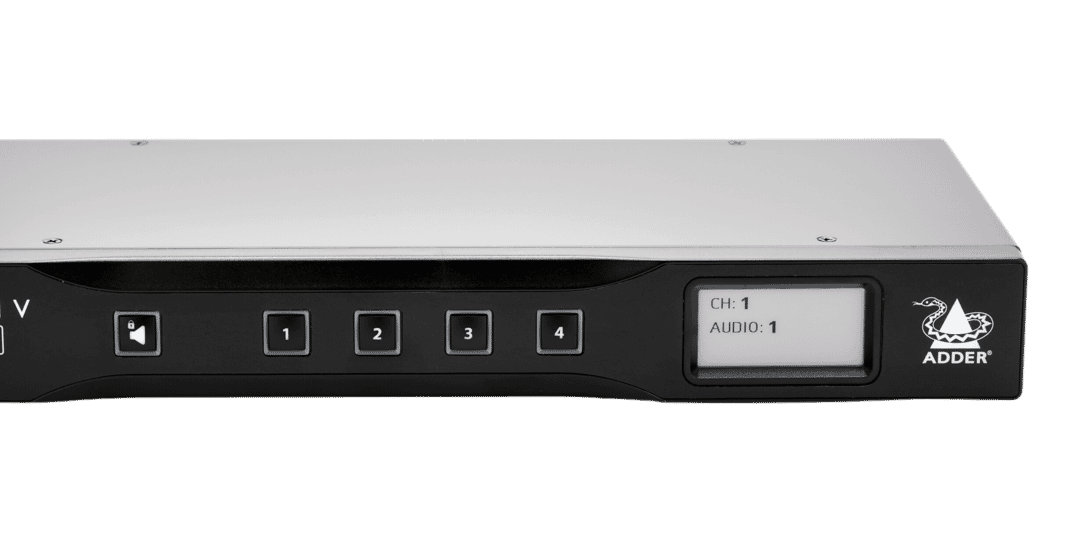

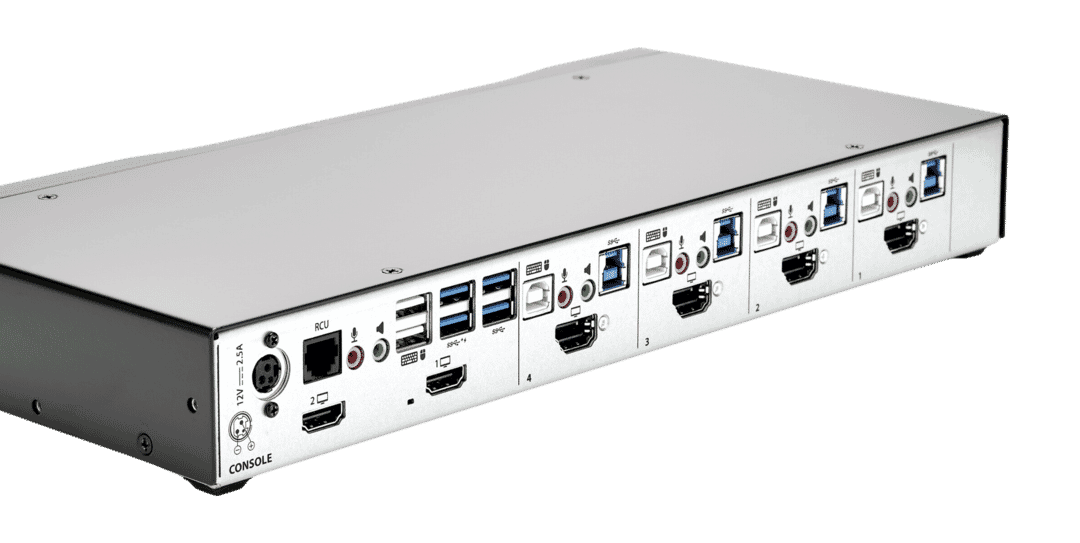

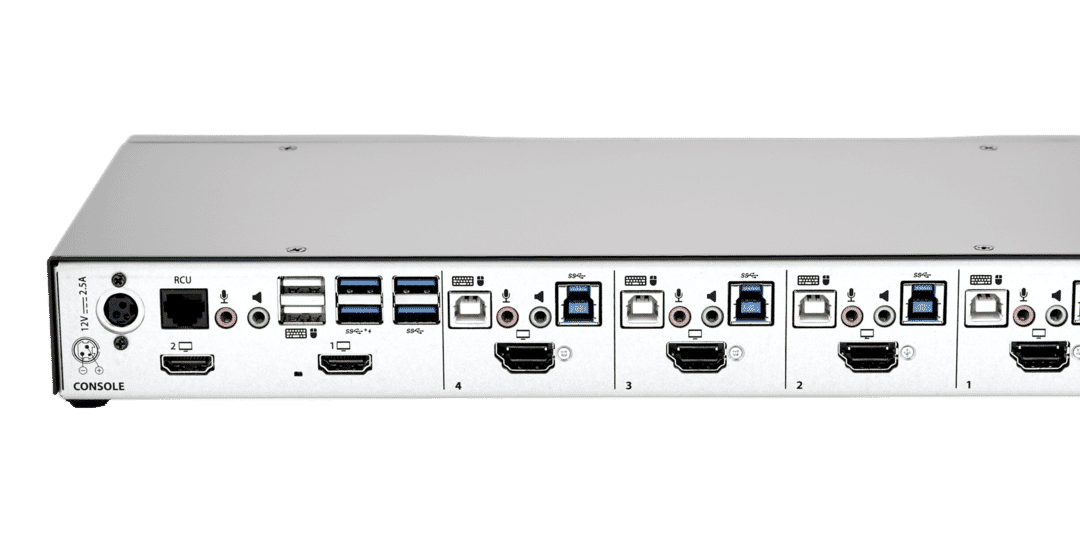

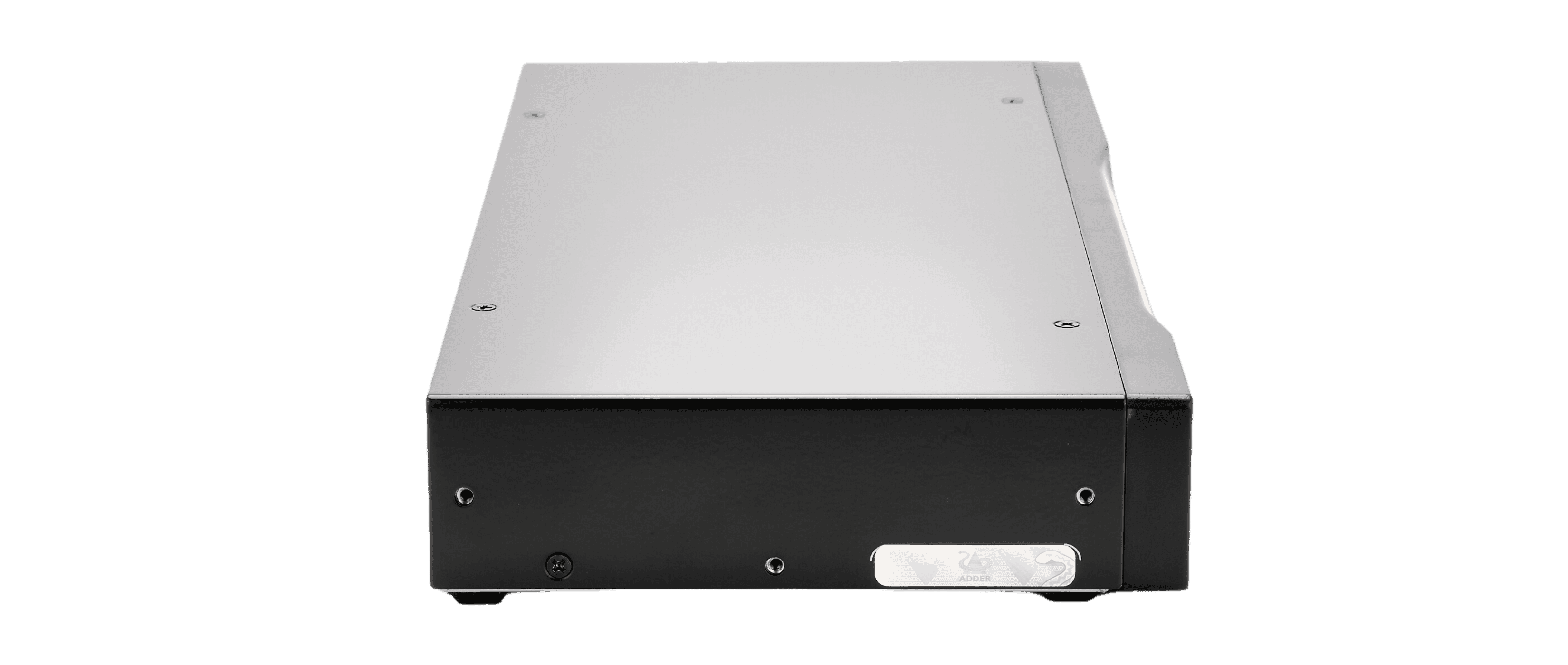

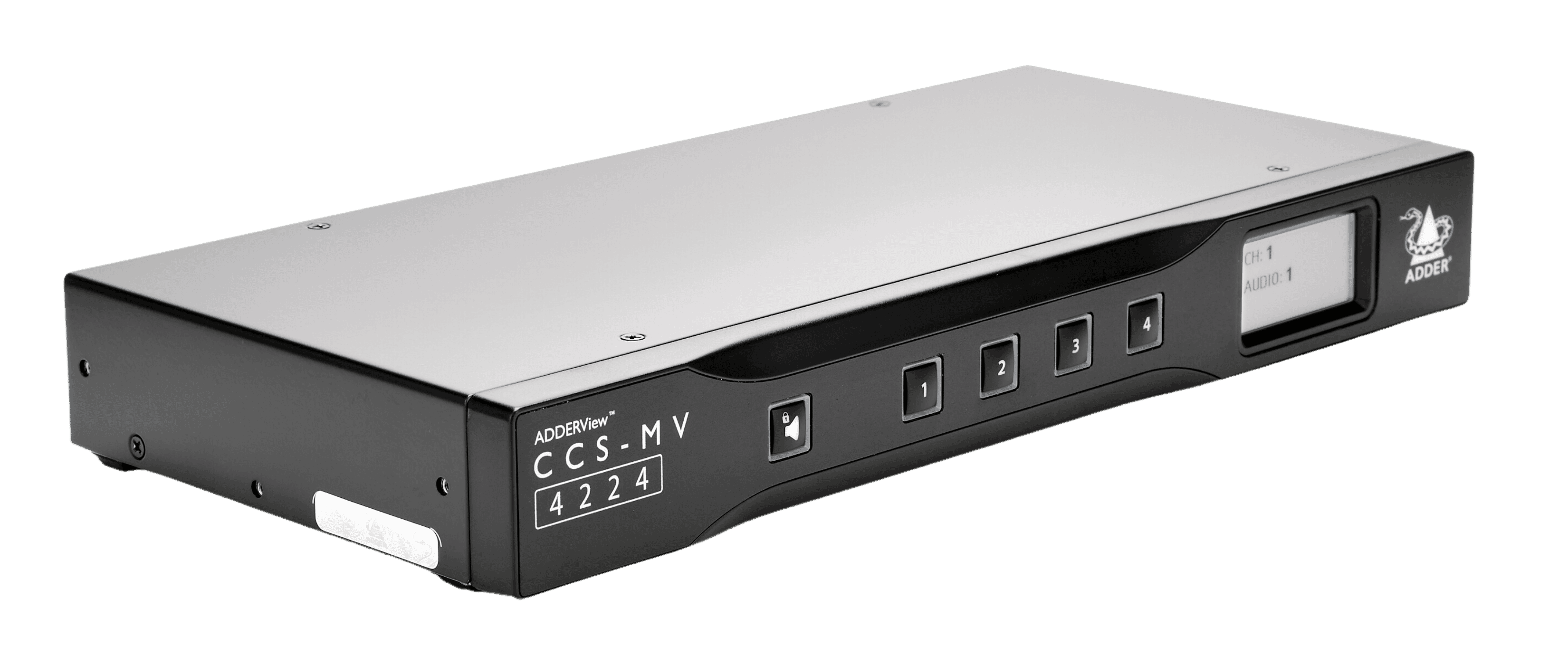

CCSMV4224 Multiviewer KVM DisplayPort HDMI Switch - Front quarter view CCSMV 4224 KVM Multi-Viewer Integrated command and control center diagram CCSMV4224 Multiviewer KVM DisplayPort HDMI Switch - Front view CCSMV4224 Multiviewer KVM DisplayPort HDMI Switch - Back panel view CCSMV4224 Multiviewer KVM DisplayPort HDMI Switch - Front quarter left view
Related accessories
RMK13

ADDER® Rackmount Kit RMK13

ADDER® Rackmount Kits are designed to enable easy installation within the rack environment.

The RMK13 is a rackmount kit for use with the ADDERView® CCS-MV4224 and ADDERView® Secure Desktop Switches

View product
Where to buy

Adder products are purchasable through our key technology partners. You can find a partners on our where to buy page.

Where to buy
What's in the box

1x ADDERView® CCS-MV 4224 4K multi-viewer KVM switch
1x Power supply unit with universal mains cable
1x Quick start guide

Ordering information

CCS-MV 4224: ADDERView® Multi-Viewer 4-port 4K switch
