ADDERLink® INFINITY 100T VGA

ZeroU™ IP-based high performance KVM for extension/matrix of video, audio and USB over a single cable

ADDERLink INFINITY 100T VGA

Overview

ADDERLink® INFINITY 100T VGA (ALIF100T) is a ZeroU™, high performance IP KVM (Keyboard, Video, Mouse) extender and/or matrix that enables the use of standard IT infrastructure to extend computers away from the user environment.

  • Zero U form factor
  • IP-based: use your existing network
  • USB powered
  • Low power consumption
  • Supports multiple video resolutions
  • Easy retrofit into existing infrastructure
  • Plug and play

Note: If using with an AIM Manager, the AIM must be running firmware version 4.7 or above

Product codes
ALIF100T-VGA

Product Features

  • ZeroU™ size: The ADDERLink™ INFINITY 100T (ALIF100T) takes ZeroU™ of rack space in the server room allowing for ultimate flexibility and ease of installation

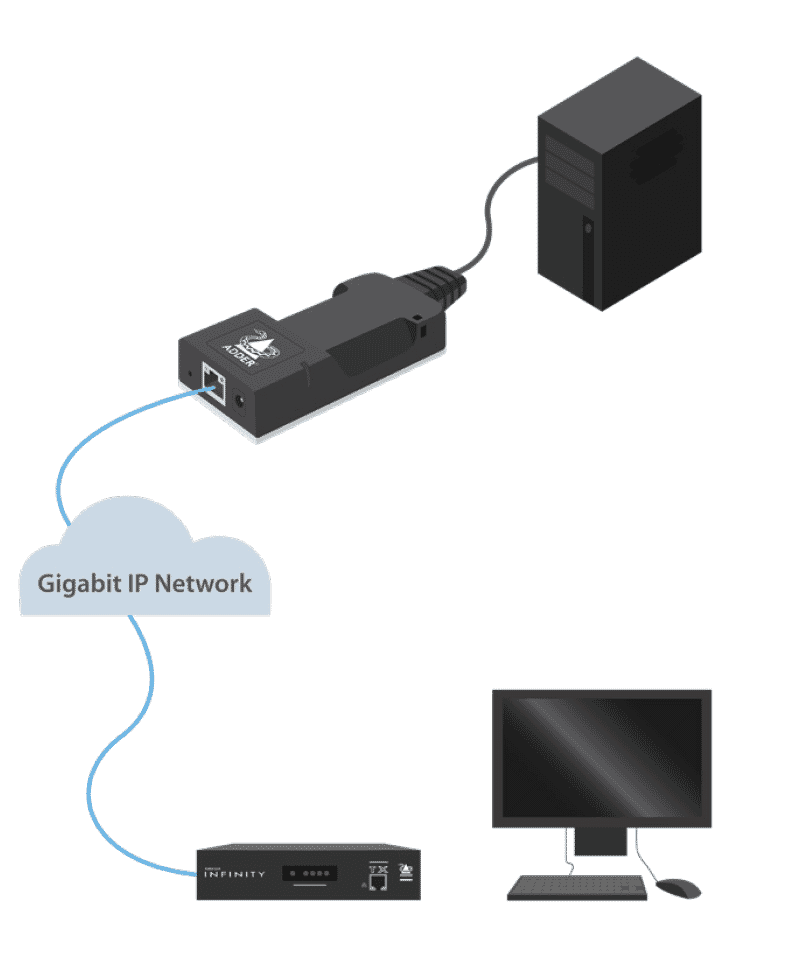

  • IP-based: Use your existing networking infrastructure to extend or matrix your computing resources to your users
  • USB powered: The device can be powered from USB. This means there is no need to provision for an external PSU. Options for powering from an external PSU or redundant PSU are also available
  • Low power consumption: Requiring less than 3 Watts, the unit can be powered from USB. This means it could use less than a quarter of the energy when compared to other solutions
  • Video options: The system supports resolutions to a maximum of 1920x1200 @60Hz through a VGA interface.
  • USB 1.1: Enables you to connect any USB human interface device from mouse and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers
  • Seamless integration with the ADDERLink™ INFINITY range: The ALIF100T can integrate seamlessly into your existing ADDERLink™ INFINITY setup, replacing or working in conjunction with your existing ALIF endpoints (Refer to manual on AIM firmware requirements for a matrix installation)
  • Perfect digital video: The ALIF100T uses an encoding system that is spatially-lossless, with 1:1 pixel mapping, so the digital video you receive is the same as the digital video leaving the remote computer ensuring the very best picture available and color accuracy
  • USB audio: The system delivers USB stereo audio (Line In, Line Out) digitally across the network
  • EDID management: The system has intelligent EDID management to either allow the true characteristics of the monitor to be passed back to the computer, or controlled resolutions to be imposed
  • Digital KVM matrix: By the addition of ADDERLink INFINITY Management system (AIM) you can turn multiple point to point extenders into a matrix system that allows any workstation to connect to any computer connected to the network. See the AIM page on the Adder website for details



Specification

Operating/storage conditions

Operating temperature:  0 to 50ºC/32 to 122ºF
Storage temperature: -10 to 60ºC/14 to 140ºF
Storage and operating relative humidity: 10-90% non-condensing
Altitude: < 2000m
MTBF: >500,000 hours

Power

USB power: 2 x USB1.1 (2 x 500mA@5v) 5W
External power: 5VDC, 1A, (LPS)
Typical power consumption: 3 watts
BTU: 10.2BTU/hr

Physical

Dimensions: (L)110mm/4.3” x (W)55mm/2.17” x (D)25mm/1” with 30cm/12” cable length
Weight: 0.2kg /0.4 lb
Materials: ABS and aluminum construction

Connectors


Computer: 1x VGA, 2x USB Type-A
Ethernet: 1 x 8p8c (RJ45)
Power: 2.5mm socket


Specification

USB: USB1.1 full and low speed (No HS support)
USB features: Keyboard, mouse, and touch
USB device seen as: 7 or 13 port hub
Max video resolution: Up to 1920x1200 @60Hz
Audio: Line in/out USB audio 2 channel 16bit 48KHz
Ethernet: 1GbE (No 10/100 support)

Packing Box

Dimensions: (L) 292mm/11.5” (W) 245mm/9.6” (D) 55mm/2.1”
Weight: 0.5kg/1.1lb

Approvals / Compliance

CE and FCC

UKCA & ICES and cULus

See the compliance web page for the full list

Cable types recommendations

Cat5e and above

Cable length rules

Ethernet specifications rules apply 100m/300ft maximum run

Associated products

ADDERLink® INFINITY 1002

As part of the ADDERLink™ INFINITY range, ADDERLink INFINITY 1002 is a high performance KVM extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. Configurable as a single head or single link, this extender provides pixel perfect video with minimal lag across a distance of up to 10km.

ADDERLink® INFINITY Dual 2020

Part of the ADDERLink® INFINITY range, the ADDERLink® INFINITY Dual 2020 is a high performance KVM solution that enables you to isolate critical computing hardware in a secure and temperature controlled environment.

ADDERLink® INFINITY Dual

ADDERLink INFINITY Dual is a high performance KVM (Keyboard, Video and Mouse) extender that forms part of the ADDERLink INFINITY Range. This enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station, whilst maintaining a pixel perfect desktop experience.

ADDERLink® INFINITY Dual 2112T

Part of the ADDERLink INFINITY range, the ADDERLink INFINITY Dual 2112T is a high performance KVM solution that enables you to isolate your critical computing hardware  from users. Configurable as a dual link or dual head, this extender serves pixel perfect video across distances up to 10km with no loss of compression and minimal lag.

ADDERLink® INFINITY 101T DVI

ADDERLink™ INFINITY 101T (ALIF101T) is a high performance ZeroU™ IP KVM (Keyboard, Video, Mouse) extender with matrix capability that enables the use of standard IT infrastructure to extend computers away from the user environment.

ADDERLink® INFINITY 101T DP

ADDERLink™ INFINITY 101T (ALIF101T) is a high performance ZeroU™ IP KVM (Keyboard, Video, Mouse) extender with matrix capability that enables the use of standard IT infrastructure to extend computers away from the user environment.

ADDERLink® INFINITY 101T HDMI

ADDERLink™ INFINITY 101T (ALIF101T) is a high performance ZeroU™ IP KVM (Keyboard, Video, Mouse) extender with matrix capability that enables the use of standard IT infrastructure to extend computers away from the user environment.

Product Gallery

White papers
Where to buy

Adder products are purchasable through our key technology partners. You can find a partners on our where to buy page.

Where to buy
What's in the box

1x ALIF100T unit
1x Quick start guide

Ordering information

ALIF100T-VGA: ADDERLink® INFINITY TX with VGA video
