ADDERLink™ INFINITY Manager (AIM)

A control suite which transforms ADDERLink™ INFINITY extenders into a digital matrix solution.

ADDERLink INFINITY Manager - A.I.M.

Overview

The ADDERLink™ INFINITY Manager (AIM) server is a control suite which transforms ADDERLink INFINITY (ALIF) extenders into a digital matrix solution. Using standard IP
infrastructure it is possible to route any user station to any computer attached to the network without any compromises to video quality or control. It allows co–operative sharing of computers and multicasting of video to any destination.

  • Intuitive, multi-lingual user interface
  • Multiple switching methods
  • Configurable user access rights
  • Full audit trail
  • Easy centralized management
  • Open API for 3rd party control





Product codes
AIM-24; AIMLIC-48; AIMLIC-96; AIMLIC-192; AIMLIC-288; AIMLIC-UNL
AIM-Diagram-2021

Product Features

Secure access and communications
Using TLS (transport layer security) and HTTPS, communications between ADDERLink™ INFINITY (ALIF) units and the ADDERLink
INFINITY Manager (AIM), and between AIM and the outside world are all secure.

Redundant operation
For 24/7 reliability a second hot AIM can be added to ensure constant uptime and with dual NIC interfaces on every ADDERLink INFINITY unit, systems can be easily designed
for maximum resilience.

User access rights management and audit trails
Administrators can manage access rights to each device on a user by user basis either manually through the web browser or automatically using Active Directory. Reports
showing the history of devices, user logins and device connections can be viewed and exported to a CSV file or via SYSLOG.

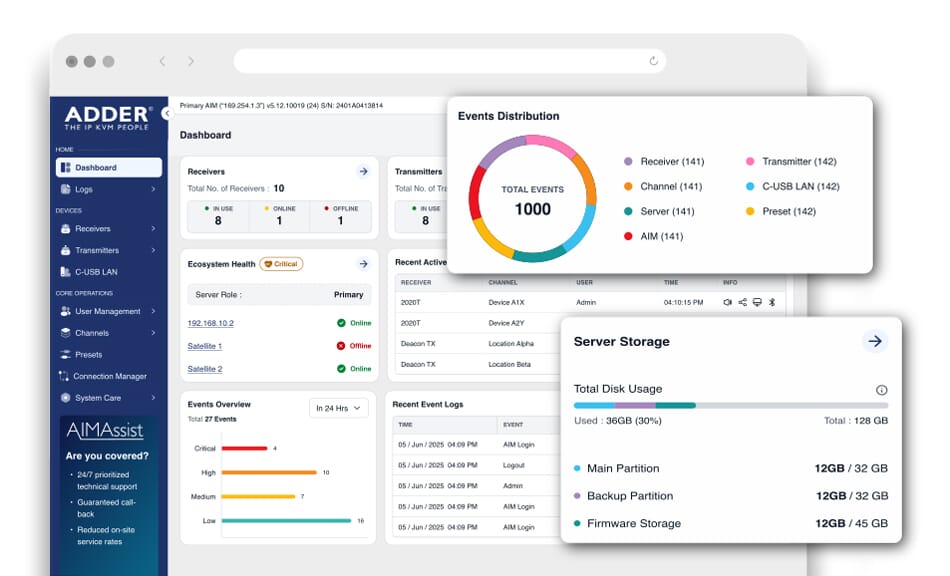

Easy centralized management
Accessed via a web browser, the dashboard gives a real-time overview of system connections and users. Tabs enable you to navigate between settings and devices or user
sub-menus.

Control Channel and Presets connections
AIM can be used to make connections between an individual pair of transmitter and receiver devices centrally from within the management system. Using Presets, a list of
pre-defined connections, multiscreen, video wall or signage setups can be pushed with a single click.

Internationalization
The user desks can select different keyboard configurations to suite their requirements and as a global setting select the language for the OSD from a choice of over 14 languages.

On screen display at each user station
Users login and choose channel connections from an intuitive OSD similar to that of a Digital TV. Users can also use Presets to change channels for multiple screens across multiple receivers.

Remote OSD
The remote OSD allows the user to ‘push’ video and control to another station or to a video wall or projector.

Favourites and hotkey switching
Each user can select their favourite channels within the OSD and allocate a hotkey for fast switching between channels.

Choice of connection modes
Administrators can choose to give users the ability to connect in four modes: View only, shared, private or exclusive. Each permitted mode is then made available within the OSD.

Fast video and USB switching
The switching time between computers is less than 1 second to provide a quality user experience.

Multicasting
Network multicasting allows the system to share video simultaneously from one transmitter to an unlimited number of receivers. Suitable for signage, monitoring and sharing of desktops.

USB sharing
USB sharing allows multiple users to connect to and control a single computer at the same time. Each transmitter can report 12 unique USB devices (identified by VID/PID codes) but will merge devices with the same ID to allow many more.

Channels
Considered as a virtual transmitter, a channel may combine video, audio and USB from different transmitters as a single source. Ideal where audio alerts or mixed video sources are required.

Open API for 3rd party control systems
Adder Technology publishes a simple API structure to allow easy integration with other 3rd Party control systems supplied by companies like AMX, Crestron, HRS or MediaLon at a HTTP level.

LDAP integration
To help ease setup, the system has an LDAP interface so users and passwords from other systems can easily be imported.

SNMP v3 get / walk
External machines can interrogate AIM to find out the status of the ALIF network and units. SNMP v3 security is implemented, supporting AES/DES transport with MD5/SHA
authentication.

External NTP server support – NTPv4.2
Connect up to 3 NTP servers with authenticated connections using MD5 and Key ID as defined in the NTP standards. All ALIF units in an AIM network now get time using authenticated NTP from AIM.

System backups
Backups of the database can be saved internally, externally or emailed automatically. Automatic updates can be scheduled on an hourly, daily or weekly basis.

Centralized firmware upgrades
As well as managing its own firmware upgrade, AIM manages the upgrade of each device on the network and can deploy firmware to hundreds of devices at the same time, meaning a systemwide upgrade takes only a few minutes.

Easy matrix setup
Using zero config. networking, AIM automatically obtains the MAC addresses of extender devices as they are attached to the network. The administrator allocates IP addresses, names and locations so that devices are easy to identify, configure and control.

Specification

Hardware
• Industrial spec server with solid state memory

Software
• Closed system operating Linux

Physical design
• 19 inch 1U rack mountable chassis in a robust metal construction
• Dimensions: (W)432mm/17” x (H)44mm/1.73” x (D)230mm/9”
• 2.75kg/6lbs

Power
• External power IEC input unit, 100-240VAC 50/60Hz, 1.5A, input to power adapter
• 12VDC, 60W output

Mean Time Between Failure (MTBF)
• SSD 3,000,000 hrs
• Motherboard 290,000 hrs
• RAM 1,400,000 hrs

Note
The SSD MTBF has been calculated in accordance with Telcordia® Reliability Prediction Procedure for Electronic Equipment, SR- 332, Issue 4, March 2016 standard utilising
Method I. The RAM and Motherboard MTBF data has been calculated based on the manufactures statistical analysis of component failures with reference to MIL-HDBK-217F.

Operating temperature
• 0 to 40ºC/32 to 104ºF

Approvals
• CE, FCC

Associated products

ADDERLink™ INFINITY 4000

The ADDERLink™ INFINITY 4000 (ALIF4000) is the world’s rst dual-head, 5K high performance IP KVM matrix over a single fiber.

Fully compatible with the existing ADDERLink INFINITY (ALIF) range, and supported by the ADDERLink INFINITY Manager (AIM), the ALIF4000 can be used as a point-to-point extender or easily integrated into a wider matrix system.

ADDERLink™ INFINITY 100T

ADDERLink™ INFINITY 100T (ALIF100T) is a ZeroU™, high performance IP KVM (Keyboard, Video, Mouse) extender and/or matrix that enables the use of standard IT infrastructure to extend computers away from the user environment.

ADDERLink™ INFINITY Dual

Part of the ADDERLink™ INFINITY range, the ADDERLink INFINITY Dual is a high performance KVM solution that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station.

ADDERLink™ INFINITY 1002

As part of the ADDERLink™ INFINITY range, ADDERLink INFINITY 1002 is a high performance KVM extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. Configurable as a single head or single link, this extender provides pixel perfect video with minimal lag across a distance of up to 10km.

ADDERLink™ INFINITY Dual 2112T

Part of the ADDERLink INFINITY range, the ADDERLink INFINITY Dual 2112T is a high performance KVM solution that enables you to isolate your critical computing hardware  from users. Configurable as a dual link or dual head, this extender serves pixel perfect video across distances up to 10km with no loss of compression and minimal lag.

ADDERLink™ INFINITY Dual 2020

Part of the ADDERLink™ INFINITY range, the ADDERLink™ INFINITY Dual 2020 is a high performance KVM solution that enables you to isolate critical computing hardware in a secure and temperature controlled environment.

Where to buy

Adder products are purchasable through our key technology partners. You can find a partners on our where to buy page.

Where to buy
Ordering information

AIM-24-XX AIM Manager licenced to 24 end points

XX = Mains Lead Country Code:

UK = United Kingdom

US = United States

EURO = Europe

AUS = Australia

JP = Japan

CN = China



Software Licence Upgrade

AIMLIC-48 AIM Manager licence to 48 end points

AIMLIC-96 AIM Manager licence to 96 end points

AIMLIC-192 AIM Manager licence to 192 end points

AIMLIC-288 AIM Manager licence to 288 end points

AIMLIC-UNL AIM Manager licence to unlimited end points
