ADDERView® CCS-MV4228 Multi-Viewer

Command and control multi-viewer switch for sharing 4K video, keyboard and mouse, plus audio between eight computers. Innovative hybrid DisplayPort™ and HDMI® video ports for flexible connectivity from a single computer.

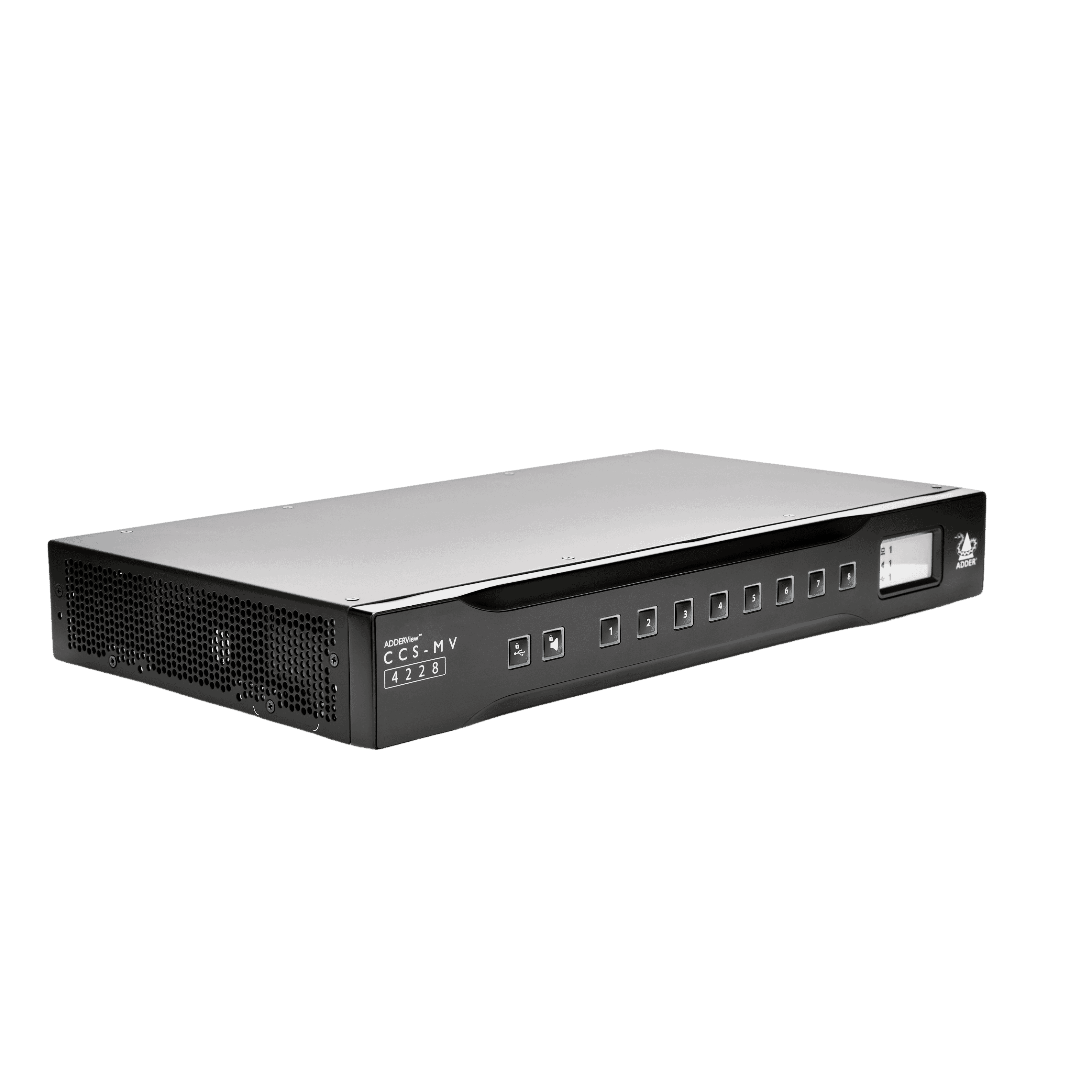

CCS-MV 4228 Multi-Viewer

Overview

The ADDERView® CCS-MV, a desktop multi-viewer switch, provides simultaneous, real-time 4K KVMA (Keyboard, Video, Mouse and Audio) access of up to eight computers from a single workstation. Users can instantly take control of the target computer by simply moving the mouse between windows, providing the experience of a single desktop.

  • Directly connect a single workstation to eight video, audio and USB sources
  • Access any number of sources on a network when combined with an ADDERLink® INFINITY IP KVM Matrix
  • Seamless cursor interaction with sources as if using a single desktop
  • Color-coded identifiers plus configurable name for fast channel identification
  • Multiple window layouts for  real-time data visualization and improved decision making
  • Enhanced, decluttered workspace ergonomics and improved situational awareness
ADDERView CCS-MV4228 Diagram

Product Features

  • Video performance
    Up to UHD 4K video output resolution is generated, thus providing a crystal clear display, even with a tiled window layout.

  • Automatic switching
    Natural automatic switching of KVM and audio control between ports without the need to press any buttons. Simply move the mouse between windows.

  • Flexible screen layout
    Use preset window layouts, or move and resize windows to create custom layouts. Dual output ports allow for extended or duplicated displays.

  • Channel identification
    Reduce the chances of operator error by displaying a meaningful name for each channel. The port LED and window border colors may also be configured.

  • USB performance
    Emulated USB2.0 ports for fast switching of HID (Human Interface Devices), such as keyboard and mouse. Hi-speed USB3.0 switched port for mass storage and isochronous devices, including flash drives, headsets and web cams.

  • Flexible computer connections
    Connect to a combination of single and dual-head computers with either DisplayPort, HDMI or DVI connectors.

  • Analog audio
    Output analog audio. An audio ‘Hold’ facility assigns the audio connection to a specific computer whilst the KVM is switched to another computer. Useful when a user needs to talk to one channel, whilst working on another.

  • Digital audio mixer
    Option to combine audio signal from multiple HDMI® channels. Adjust the volume level for each channel.

  • Copy & Paste
    Copy text between Windows 10 computers using standard keyboard, Ctrl+C and Ctrl+V commands.

  • Matrix integration
    The ADDERView® CCS-MV 4228 may be connected to the ADDERLink® INFINITY matrix system. This allows the user to control any 8 computers connected to the matrix network.

  • Remote control
    Select layout presets and input channels remotely for control room applications where the displays are used to aid situation awareness.

Specification

  • Operating Systems and Compatibility
    Windows, Linux, macOS

  • Video resolutions (Up to two screens)
    UHD 4k (3840x2160) at 4:4:4
    Frame Rate: 30
    Color Depth: 8 bpc

  • Computer Connections
    2 x USB B 2.0 (True Emulation (HID), Hi-Speed)
    1 x DisplayPort ™ (Dual Port - DP+HDMI)

  • Console Connections
    2 x USB A 2.0 (True Emulation (HID), Hi-Speed)
    1 x DisplayPort ™ (Dual Port - DP+HDMI)

  • Audio
    Audio Type: Analog/Digital
    Channels: 2
    Audio Out Port Type: 1x 3.5mm jack

  • Serial Ports
    1 x RS232, For remote control
    Serial Type Connection RJ12 (6p6c)

  • Front Panel Features
    8 x Multi colour status LEDs
    1 x E-Paper Display
    1 x Audio Hold button
    1 x Hi-Speed USB Hold button

  • Physical design
    Robust metal construction
    Width: 439mm/17.3in
    Height: 58mm/2.3in
    Depth: 237mm/9.3in
    Weight: 3.8kg/8.4lb

  • Power
    Power type: 1 x 12V 3-pin Kycon
    Input Power Supply: PSU 4A
    Maximum power (Watts): 36
    Maximum Power (Volts): 12
    Maximum power (Current): 3
    Additional Information: 100-240V AC, 47/63Hz. 12V DC 48W output from power supply unit.

  • Environmental
    Operating temperature: 0 - 40°C/32 - 104°F
    Storage temperature: -20 - 60°C/-4 - 140°F
    Storage and operating humidity: 0% - 80% (non-condensing)
    Temperature Regulation: Built-in fan
    Warranty: 2 years

  • Approvals
    CE, cTUVus, FCC, ICES, UKCA

  • Standards
    ANSI 63.4, EN/IEC 62368-1, EN55032 /CISPR 32, EN55035/CISPR 35, EN61000-3-2, EN61000-3-3, EN63000, FCC pt15B

  • Other
    Cal Prop 65, China ROHS, EU REACH, UK REACH
Associated products
Thumbnail

ADDERView® CCS-MV 4224 Multi-Viewer

The ADDERView® CCS-MV, a desktop multi-viewer switch, provides simultaneous, real-time 4K KVMA (Keyboard, Video, Mouse and Audio) access of up to four computers from a single workstation. Users can instantly take control of the target computer by simply moving the mouse between windows, providing the experience of a single desktop.

View product
Thumbnail

ADDER CCS-PRO8

The ADDER CCS-PRO8 is a Command and Control Switch which enables users to interact with up to eight computers using a single keyboard and mouse.

View product

Product Gallery

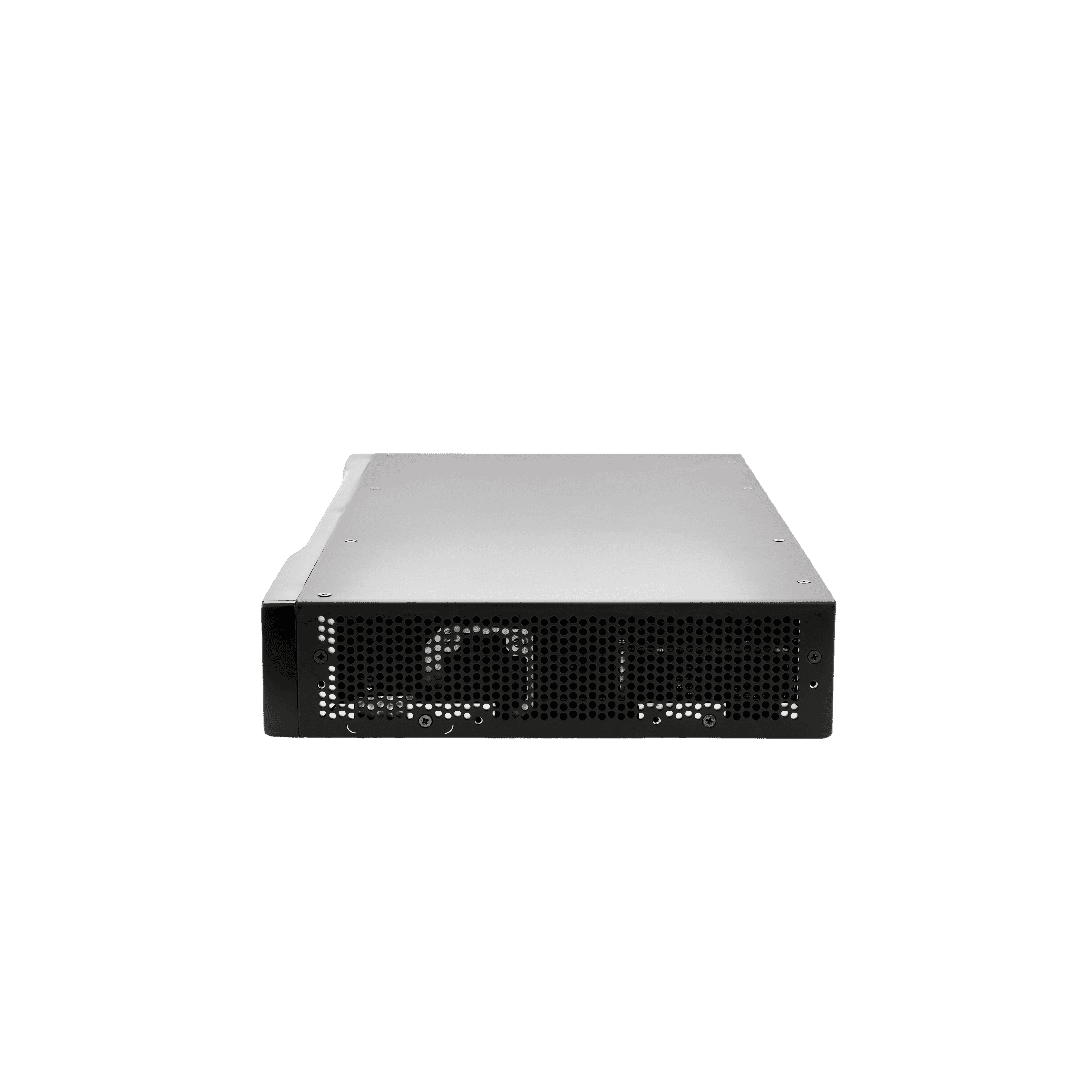

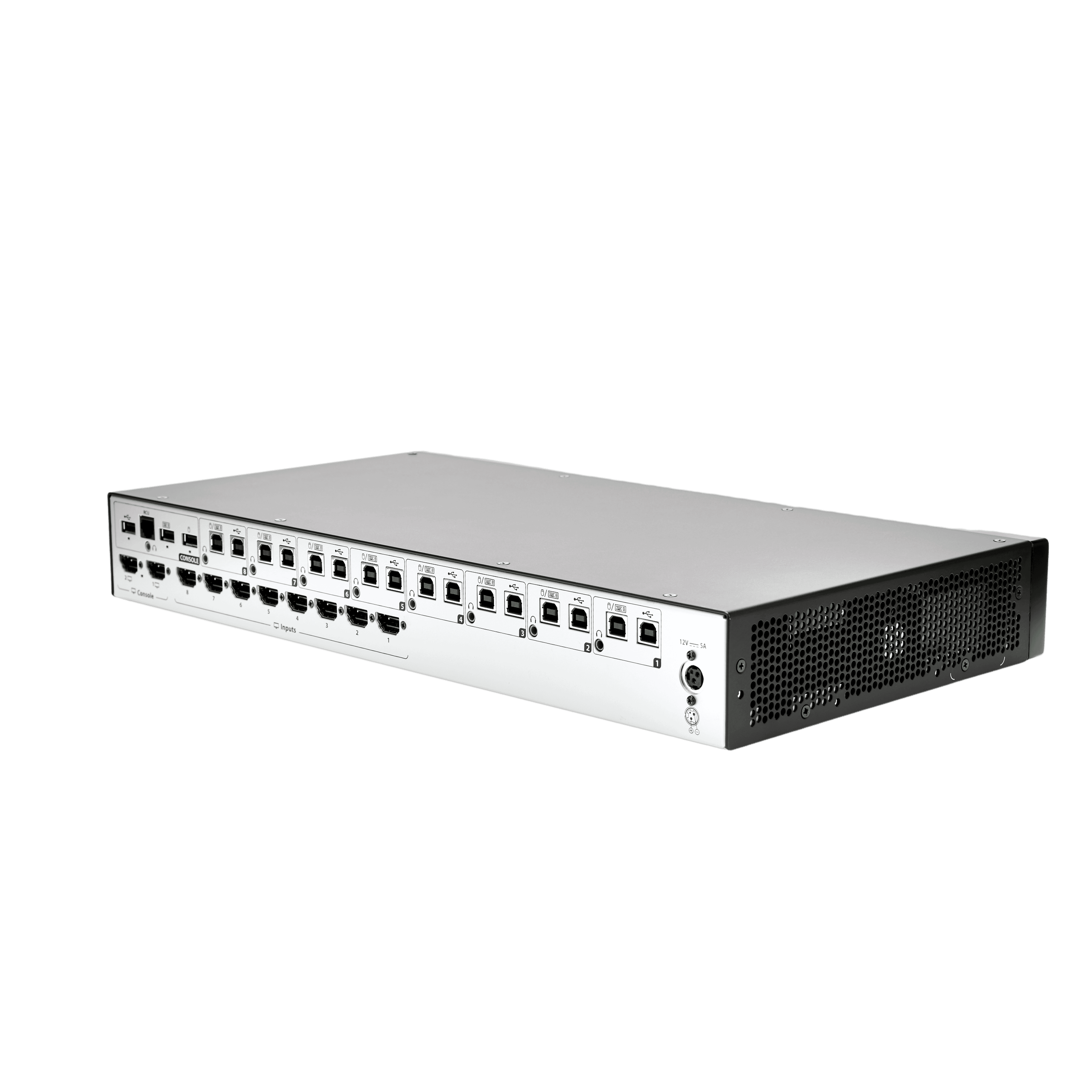

CCS-MV 4228 Multi-Viewer ADDERView CCS-MV4228 Diagram CCS-MV 4228 Multi-Viewer CCS-MV 4228 Multi-Viewer CCS-MV 4228 Multi-Viewer CCS-MV 4228 Multi-Viewer CCS-MV 4228 Multi-Viewer CCS-MV 4228 Multi-Viewer CCS-MV 4228 Multi-Viewer
Where to buy

Adder products are purchasable through our key technology partners. You can find a partners on our where to buy page.

Where to buy
What's in the box

1x ADDERView® CCS-MV 4228 - 8-port 4K multi-viewer switch
1x Power supply unit with universal mains cable
1x Quick start guide

Ordering information

CCS-MV 4228: ADDERView® Multi-Viewer 8-port 4K switch
